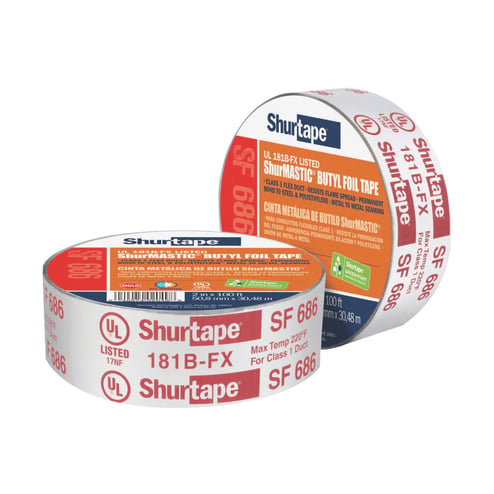

Shurtape® 111163 SF 686 Printed Foil Tape, 100 ft L x 3 in W, 17 mil THK, Non-Flammable Butyl Rubber Adhesive, Aluminum Foil Backing, Silver


Description

Shurtape® Printed Foil Tape, Series: SF 686, 100 ft Length, 3 in Width, 17 mil Thickness, Silver, Non-Flammable Butyl Rubber Adhesive, Aluminum Foil Backing, 111 in-oz Adhesion Strength, 23.8 in-lb Tensile Strength, 200 deg F Maximum Operating, -20 deg F Minimum Operating

ShurMASTIC® butyl foil tape used for airtight and moisture-free sealing of Class 1 flex duct, sheet metal and duct wrap vapor barriers, and is also approved for subgrade application on PVC coated duct. A paintable, UL 181B-FX listed mastic on a roll for indoor or outdoor use, SF 686 is designed with a butyl rubber adhesive system that can withstand wide temperature variances once applied.

Specifications

Adhesion Strength 111 in-oz
Adhesive Material Non-Flammable Butyl Rubber
Backing Material Aluminum Foil
Color Silver
Length 100 ft
Maximum Operating Temperature 200 deg F
Minimum Operating Temperature -20 deg F
Series SF 686
Tensile Strength 23.8 in-lb
Thickness 17 mil
Width 3 in

Country of Origin: United States

Standards and Approvals: ASTM D3759, ASTM D3759M, ASTM D3330, ASTM D3330M, ASTM D3652, ASTM D3652M, UL 723, UL 181B-FX, Pressure Classes SMACNA 1/2, 1, 2, 3, 4 and 6, Seal Classes A, B, C, EU Directive 2011/65/EU, EU Directive 2012/19/EU, FDA Compliant

Application:
For airtight and moisture-free sealing of Class 1 flex duct, sheet metal and duct wrap vapor barriers and also approved for subgrade application on PVC coated duct

Features

  • Linered construction
  • Instant, water-resistant grip to most surfaces
  • Paintable with paint recommended for aluminum
  • Contains no asbestos, CFCs or PCBs
  • Non-flammable, butyl rubber adhesive
  • Us green building council - LEED® point contributor product
  • Indoor/outdoor mastic foil tape
