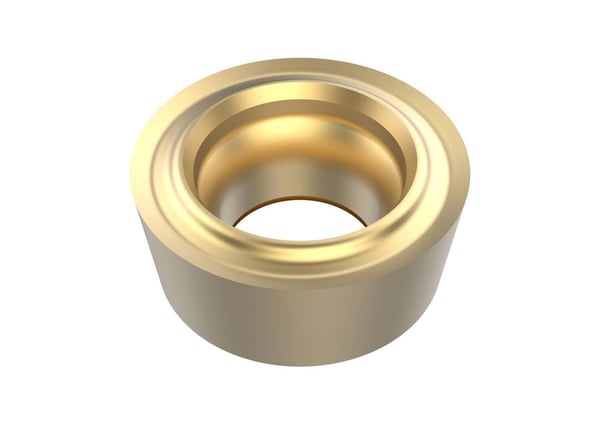

Seco 00099703 Turning Insert, ANSI Code: RCMT1204M0-F1 CP500, RCMT Insert, Material Grade: M, 1204M0 Insert, Round Shape, 12 Seat, Positive Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500


Description

Seco Turning Insert, RCMT Insert, 1204M0 Insert, Round, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12 Seat, Positive Rake, F1 Chipbreaker, 4.5 mm Hole Dia, Manufacturer's Grade: CP500, ANSI Code: RCMT1204M0-F1 CP500, ISO Code: RCMT1204M0-F1 CP500, 7 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

The Turning insert RCMT1204M0-F1 CP500 features a positive type with a clearance angle major of 7 degrees. It has four cutting edges and a neutral insert hand. With an insert diameter of 12 mm, the insert is made from a carbide PVD grade CP500. The main application areas include steel and stainless steel, while it is partially applicable for cast irons, non-ferrous materials, superalloys and titanium, and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code RCMT1204M0-F1 CP500
Chipbreaker F1
Cutting Direction Neutral
Finish PVD-TiAlN+TiN Coated
For Use On Stainless Steel
Hole Diameter 4.5 mm
Inscribed Circle 12.7 mm
Insert Size 1204M0
Insert Style RCMT
ISO Code RCMT1204M0-F1 CP500
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Maximum Depth of Cut 5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 12
Shape Round
Thickness 4.76 mm

Country of Origin: Sweden

Application:
Finishing Applications
