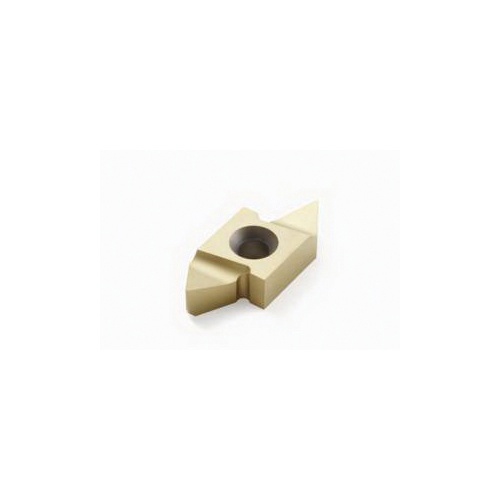

Seco 00073164 Snap-Tap® Laydown Threading Insert, ANSI Code: 26NRK60 CP500, 26NRK Insert, 4.5 to 2.5 TPI, Internal Thread, 60 deg Partial Profile Thread, 5.5 to 10 mm Pitch, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 26NRK Insert, 26 Insert, Internal Thread, 60 deg Partial Profile Thread Standard, 5.5 to 10 mm Pitch, 4.5 to 2.5 Threads per Inch, 15.88 mm Inscribed Circle, 7.9 mm Thickness, 26 mm Length, ANSI Code: 26NRK60 CP500, ISO Code: 26NRK60 CP500, 0.4 mm Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting Direction, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

The Thread turning insert 26NRK60 CP500 features a partial profile 60 internal thread form with a minimum of 4.5 threads per inch. It has one tooth and two cutting edges. The insert is made from carbide with a PVD coating and uses the CP500 grade. It is designed primarily for steel and stainless steel workpieces and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code 26NRK60 CP500
Corner Radius 0.4 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 60 deg
Inscribed Circle 15.88 mm
Insert Size 26
Insert Style 26NRK
ISO Code 26NRK60 CP500
Length 26 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Pitch 5.5 to 10 mm
Series Snap-Tap®
Thickness 7.9 mm
Thread Standard 60 deg Partial Profile
Thread Type Internal
Threads per Inch 4.5 to 2.5
Type Laydown

Country of Origin: India
