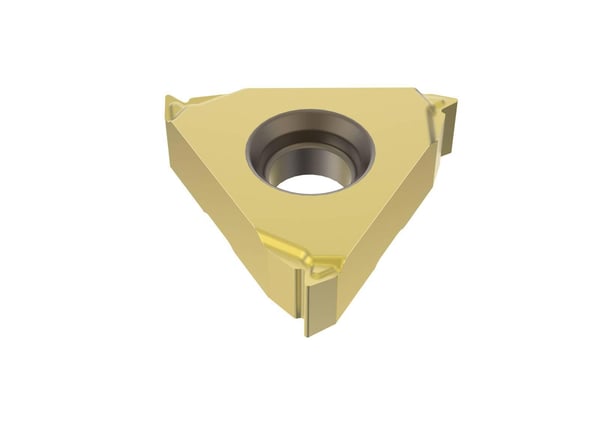

Seco 00049841 Snap-Tap® Laydown Threading Insert, ANSI Code: 16ER14W CP500, 16ER Insert, 14 TPI, External Thread, BSW Whitworth Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 16ER Insert, 16 Insert, External, BSW Whitworth, 14, 9.5 mm Inscribed Circle, 3.5 mm Thickness, 16.5 mm Length, ANSI Code: 16ER14W CP500, ISO Code: 16ER14W CP500, 0.24 mm Corner Radius, 55 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

The Thread turning insert 16ER14W CP500 features a Whitworth external thread form type with a minimum of 14 threads per inch. It is manufactured with a carbide PVD grade CP500. The insert has one tooth and three cutting edges. The main application areas include steel, stainless steel, cast irons, superalloys, and titanium, with partial applicability to non-ferrous materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code 16ER14W CP500
Corner Radius 0.24 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 55 deg
Inscribed Circle 9.5 mm
Insert Size 16
Insert Style 16ER
ISO Code 16ER14W CP500
Length 16.5 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Series Snap-Tap®
Thickness 3.5 mm
Thread Standard BSW Whitworth
Thread Type External
Threads per Inch 14
Type Laydown

Country of Origin: India

Application:
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
