Seco 00023709 Minimaster™ Milling Tip Insert, ANSI Code: MM06-0.236-R020A30-M02 F40M, MM06 Milling Tip Style, End Mill Milling Tip, Solid Carbide, 0.5 mm Corner Radius, Manufacturer's Grade: F40M, 3 Flutes

Seco Milling Tip Insert, Series: Minimaster™, MM06 Milling Tip, End Mill, 6 mm Cutting Dia, 7.5 mm Maximum Depth of Cut, 3 Flutes, M02, 0.5 mm Corner Radius, Manufacturer's Grade: F40M, ANSI Code: MM06-0.236-R020A30-M02 F40M, ISO Code: MM06-06007-R05A30-M02 F40M, Solid Carbide, PVD-TiAlN+TiN Coated

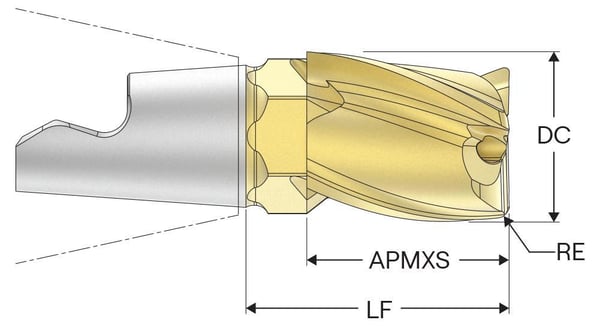

The Minimaster [R] head MM06-06007-R05A30-M02 F40M features a cutting diameter of 6 mm with a machine-side connection of MM06. It has a maximum depth of cut in the feed direction side of 7.5 mm and includes three peripheral effective cutting edges. The corner radius measures 0.5 mm. The tool is made with grade F40M and is equipped with internal coolant supply. It is suitable for machining steel, stainless steel, superalloys, and titanium. The tool can also be partially applied to non-ferrous and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
