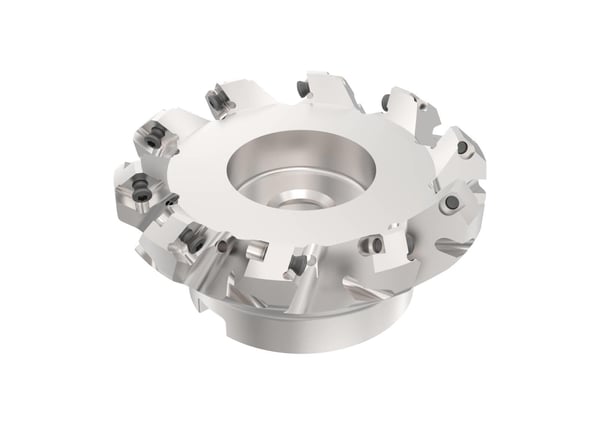

Seco 02486638 R220.53 Indexable Chamfer & Angle Face Mill, 3.15 in Dia Cutting, 1.97 in OAL, 0.295 in Max Depth of Cut, 1 in Dia Arbor Hole, 45| deg Lead Angle

Seco, 02486638, Chamfer & Angle Face Mill, Indexable, Series: R220.53, 3.15 in Diameter Cutting, 1.97 in Overall Length, 0.295 in Maximum Depth of Cut, 6 Inserts, Insert Compatibility: SE1505, 1 in Arbor Hole, 45| deg Lead Angle, Right Hand Cutting Direction, Through Coolant (Yes/No): Yes

The Face milling cutter R220.53-03.00-15-6A features an arbor shank type and a cutting diameter of 3.15 inch. It has six peripheral effective cutting edges and a connection bore diameter of 1 inch. With a maximum depth of cut in the feed direction side of 0.295 inch and a tool cutting edge angle of 45 degrees in the feed direction side, the cutter is designed for right-hand cutting. The workpiece side connection is compatible with SEEX1505 and SEMX1505. This cutter is suitable for steel, stainless steel, non-ferrous metals, superalloys, and titanium, with partial applicability to cast irons and hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
