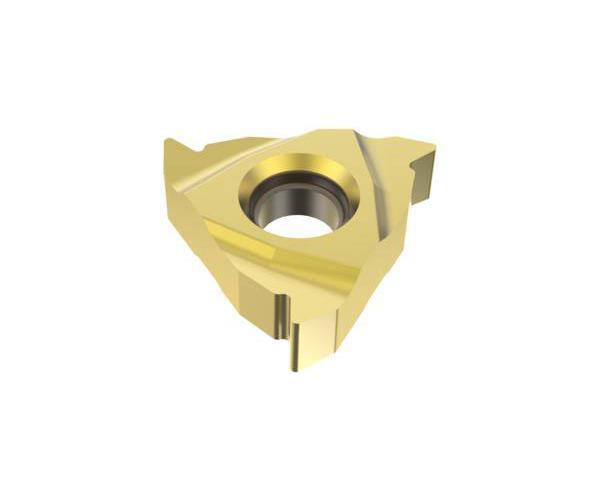

Seco 02445352 16ER Laydown Threading Insert, 16ER Insert, 11 TPI, External Thread, Whitworth Thread, Right Cutting, Manufacturer's Grade: CP500


Description

Seco, 02445352, Threading Insert, Laydown, Series: 16ER, 16ER Insert, External Thread, Whitworth Thread Standard, 11 TPI Threads per Inch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.012 in Corner Radius, 55 deg Included Angle, Manufacturer's Grade: CP500, Right Cutting Direction, Carbide

The Thread turning insert 16ER11W-A CP500 features a Whitworth external thread form type with a minimum of 11 threads per inch. It is made from a carbide PVD grade CP500. The insert has one tooth and three cutting edges. It is primarily designed for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Corner Radius 0.012 in
Cutting Direction Right
Included Angle 55 deg
Inscribed Circle 0.375 in
Insert Style 16ER
Length 0.65 in
Manufacturer's Grade CP500
Material Carbide
Series 16ER
Thickness 0.137 in
Thread Standard Whitworth
Thread Type External
Threads per Inch 11 TPI
Type Laydown

Country of Origin: Sweden

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
