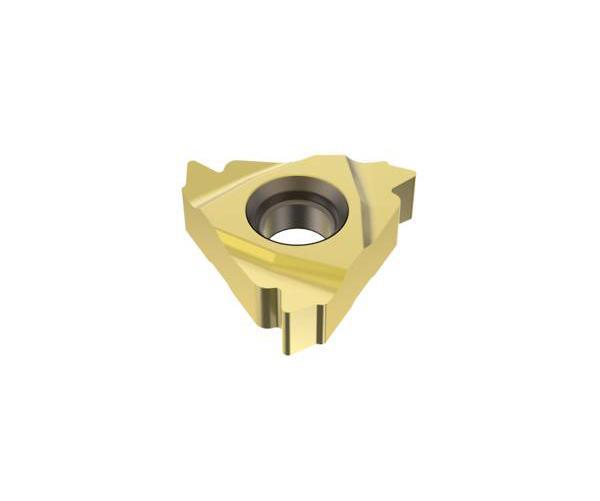

Seco 02444884 16ER Laydown Threading Insert, 16ER Insert, External Thread, ISO Thread, 0.098 in Pitch, Right Cutting, Manufacturer's Grade: CP500


Description

Seco, 02444884, Threading Insert, Laydown, Series: 16ER, 16ER Insert, External Thread, ISO Thread Standard, 0.098 in Pitch, 0.375 in Inscribed Circle, 0.137 in Thickness, 0.65 in Length, 0.013 in Corner Radius, 60 deg Included Angle, Manufacturer's Grade: CP500, Right Cutting Direction, Carbide

The Thread turning insert 16ER2.5ISO-A CP500 features an ISO Metric external thread form type with a single tooth and three cutting edges. It is made from carbide with a PVD coating and uses the CP500 grade. The insert is designed primarily for steel and stainless steel workpiece materials and is partially applicable for cast irons as well as superalloys and titanium. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Corner Radius 0.013 in
Cutting Direction Right
Included Angle 60 deg
Inscribed Circle 0.375 in
Insert Style 16ER
Length 0.65 in
Manufacturer's Grade CP500
Material Carbide
Pitch 0.098 in
Series 16ER
Thickness 0.137 in
Thread Standard ISO
Thread Type External
Type Laydown

Country of Origin: Sweden

Standards and Approvals: PROP65

Application:
For a large majority of common thread turning applications

Features

  • Eliminates the need for secondary grinding or honing operations, which makes these tools a highly economical choice
  • Features the CP500 grade that features a highly wear resistant PVD coating to provide dependable machining for a large majority of common thread turning applications
  • Tough micrograin grade intended for finishing to medium-roughing of stainless steels but with wide applicability for example in steels and aluminium alloys
  • Especially suitable in intermittent cuts
