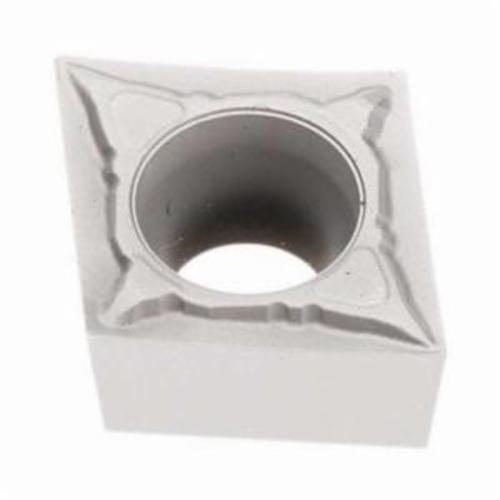

Seco 15857 Turning Insert, ANSI Code: CCGX32.50.5W-F1 TP2501, CCGX Insert, Material Grade: P, 09T302 Insert, Diamond Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP2501


Description

Seco Turning Insert, CCGX Insert, 09T302 Insert, Diamond, 3.5 mm Maximum Depth of Cut, 9.5 mm Inscribed Circle, 3.97 mm Thickness, 09 Seat, Positive Rake, W-F1 Chipbreaker, 0.2 mm Corner Radius, 4.5 mm Hole Dia, Manufacturer's Grade: TP2501, ANSI Code: CCGX32.50.5W-F1 TP2501, ISO Code: CCGX09T302W-F1 TP2501, 80 deg Included Angle, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code CCGX32.50.5W-F1 TP2501
Chipbreaker W-F1
Corner Radius 0.2 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 4.5 mm
Included Angle 80 deg
Inscribed Circle 9.5 mm
Insert Size 09T302
Insert Style CCGX
ISO Code CCGX09T302W-F1 TP2501
Manufacturer's Grade TP2501
Material Carbide
Material Grade P
Maximum Depth of Cut 3.5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 09
Shape Diamond
Thickness 3.97 mm

Country of Origin: Sweden

Application:
Finishing Applications
