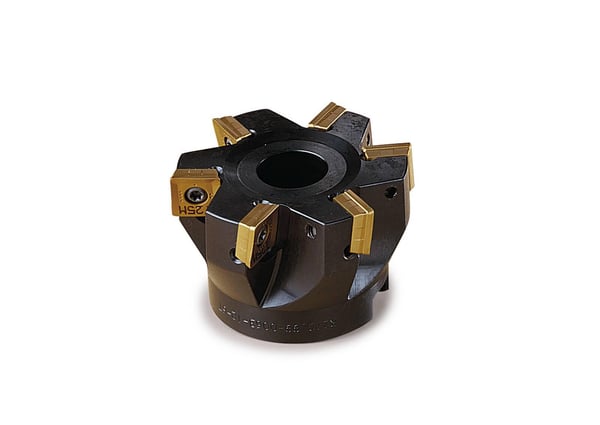

Seco 00005598 R220.99 Indexable Chamfer & Angle Face Mill, 2.48 in Dia Cutting, 1.575 in OAL, 0.433 in Max Depth of Cut, 0.866 in Dia Arbor Hole, 90| deg Lead Angle


Description

Seco, 00005598, Chamfer & Angle Face Mill, Indexable, Series: R220.99, 2.48 in Diameter Cutting, 1.575 in Overall Length, 0.433 in Maximum Depth of Cut, 6 Inserts, Insert Compatibility: SONX 1205, 0.866 in Arbor Hole, 90| deg Lead Angle, Right Hand Cutting Direction, Through Coolant (Yes/No): No

The Square shoulder milling cutter R220.99-0063-12-6T features an arbor shank type and a cutting diameter of 63 mm. With a maximum depth of cut in the feed direction side of 11 mm and a maximum depth of cut in the feed direction end of 2.4 mm, the cutter provides precise cutting capabilities. It has six peripheral effective cutting edges and a connection bore diameter of 22 mm. The workpiece side connection is SONX1205. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Arbor Hole Diameter 0.866 in
Cutting Diameter 2.48 in
Cutting Direction Right Hand
Insert Compatibility SONX 1205
Lead Angle 90 deg
Maximum Depth of Cut 0.433 in
Number of Inserts 6
Overall Length 1.575 in
Series R220.99
Through Coolant (Yes/No) No
Type Indexable

Country of Origin: France

Features

  • Coated, pre-hardened cutter body with two different pitch configurations for meeting tight tolerances and providing high reliability in a broad range of workpiece materials
  • Not only does this coated/hardened surface protect the tool from wear, it also prevents chips from welding on the cutter body
