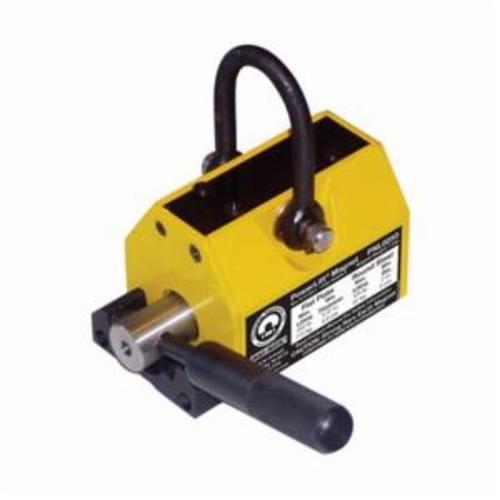

MAG-MATE® PowerLift® PNL0250 Permanent Rare Earth Lifting Magnet, 250 lb Load, 5 in L x 6-5/8 in H, Locking On/Off Magnet Activation, Neodymium, 4 in L Handle


Description

MAG-MATE® PowerLift® Lifting Magnet, Permanent Rare Earth, 250 lb Load, Locking On/Off, Neodymium, 2-5/8 in Magnet Height, 2-5/8 in Magnet Width, 3-5/8 in Magnet Length, 4 in Handle Length, 1-3/8 in H x 1-1/2 in W x 3/16 in THK Bail, 180 deg F Maximum Heat Resistant Temperature, 5 in L x 6-5/8 in H

These compact, yet powerful, Rare Earth lift magnets are designed for lifting thick, non-flexing steel. They can be used on flat or round surfaces and contain an internal release on/off device that does not contact or damage the surface of the part being lifted. Permanent magnetic lifts also eliminate the fear of dropping the load being lifted due to power failures.

Specifications

Bail Size 1-3/8 in H x 1-1/2 in W x 3/16 in THK
Dimensions 5 in L x 6-5/8 in H
Handle Length 4 in
Load Capacity 250 lb
Magnet Activation Locking On/Off
Magnet Height 2-5/8 in
Magnet Length 3-5/8 in
Magnet Material Neodymium
Magnet Width 2-5/8 in
Maximum Heat Resistant Temperature 180 deg F
Type Permanent Rare Earth

Country of Origin: China

Standards and Approvals: ASME B30.20, PROP65: Some of our products may contain chemicals known to the state of California to cause cancer or reproductive harm. www.P65Warning.ca.gov

Features

  • Handle locks in both On and Off position
  • Lifts flat or round loads
  • Easy internal manual release does not contact the load
  • RFID enabled
  • 3:1 design factor
  • On/Off permanent rare earth magnet
  • Yellow color
