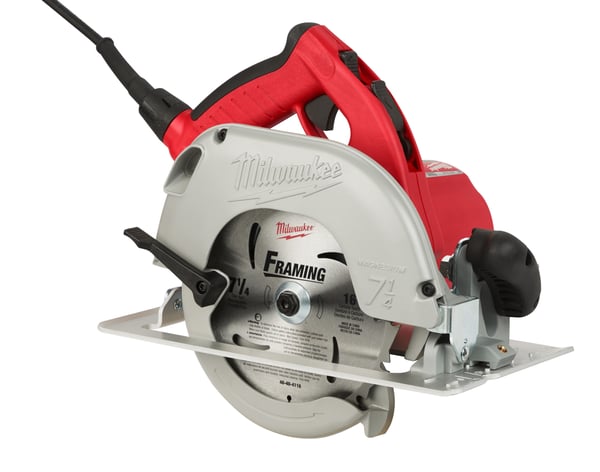

Milwaukee® 6394-21 Corded Circular Saw, 7-1/4 in Dia Blade, 5/8 in Arbor/Shank, 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg Cutting, Right Blade Side


Description

Milwaukee® Corded Circular Saw, 7-1/4 in Dia Blade, Blade Side Right, 5/8 in Arbor/Shank, 5800 rpm Speed, Cutting Capacity: 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg, 45/50/90 deg Cutting Angle, Bevel Capacity: 50 deg, Aluminum Shoe, 3 hp, 120 V AC, 15 A, Plastic Housing Material, Soft Handle, QUIK-LOK™ Double Insulated Cord, 13-3/4 in L Dimensions

The latest addition to Milwaukee® circular saw line features a patented adjustable main handle that provides users with maximum control and comfort. The handle position can be moved for the best ergonomic grip. Both front and rear handles have cushioned grips. A QUIK-LOK™ cord with a positive lock system, makes field replacement of the cord set easy and fast. A small button on the saw ensures positive lock. The power assisted brake stops the blade in seconds to repetitive cuts. At 10.6 lb and featuring a powerful Milwaukee® built 15 A motor, this saw provides the highest horsepower to weight ratio available in a 7-1/4 in saw. An aircraft aluminum shoe resists bending. Easy to reach depth and bevel adjustment knobs allow bevels to 50 deg.

Specifications

Amperage Rating 15 A
Arbor/Shank Size 5/8 in
Bevel Capacity 50 deg
Blade Side Right
Blade Size 7-1/4 in Dia
Cord Type QUIK-LOK™ Double Insulated
Cutting Angle 45/50/90 deg
Cutting Capacity 1-13/16 in at 45 deg, 1-11/16 in at 50 deg, 2-7/16 in at 90 deg
Dimensions 13-3/4 in L
Handle Type Soft
Horsepower 3 hp
Housing Material Plastic
Shoe Material Aluminum
Speed 5800 rpm
Tool/Kit Kit
Voltage Rating 120 V AC

Includes: Blade Wrench and Circular Saw Blade

Warranty: 5 years

Country of Origin: China

Standards and Approvals: CSA Certified, UL Listed

Features

  • New exclusive Tilt-Lok™ main handle adjusts to the work or most comfortable work position
  • Patented power assisted electric brake stops blade in seconds
  • Quik-Lok™ cord makes job site replacement fast and easy
  • The handle position can be moved for the best ergonomic grip
  • Both front and rear handles have cushioned grips
  • A small button on the saw ensures positive lock
