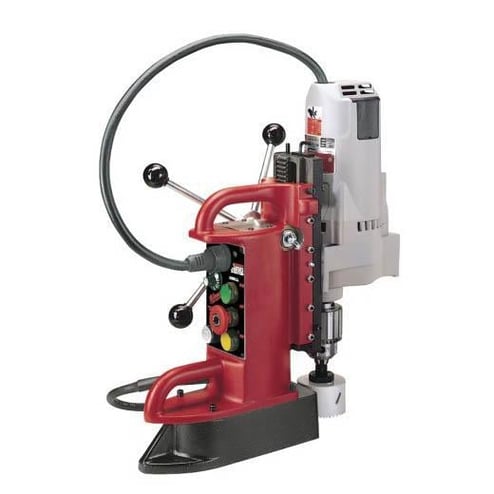

Milwaukee® 4210-1 Fixed Position Electromagnetic Drill Press, 3/4 in Chuck, 2 hp, 5-3/32 in Drill to Center From Base, 350 rpm Spindle Speed, 120 VAC


Description

Milwaukee® Electromagnetic Drill Press, Fixed Position, 3/4 in Chuck, 9 in Spindle Travel, 350 rpm Spindle Speed, 1 Spindle Speed, 1630/1670 lb Drill Point, 5-3/32 in Drill to Center From Base, 20-1/2 in Overall Height, 2 hp, 120 VAC, 12.5 A, 18-3/4 in L x 7 in W Dimensions

This combination unit features the 4202 fixed position variable speed base and the 4262-1 3/4 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.

Specifications

Amperage Rating 12.5 A
Chuck Size 3/4 in
Dimensions 18-3/4 in L x 7 in W
Drill Point Pressure 1630/1670 lb
Drill to Center From Base 5-3/32 in
Horsepower 2 hp
Number of Spindle Speeds 1
Overall Height 20-1/2 in
Spindle Speed 350 rpm
Spindle Travel 9 in
Type Fixed Position
Voltage Rating 120 VAC

Includes: 4202 Electromagnetic Drill Press Base, 4262-1 3/4 in Motor, 6 ft Safety Chain, 2Y338 Chuck and 2Y344 Key

Warranty: Limited Lifetime

Country of Origin: United States

Features

  • Powerful 12.5 A motor, engineered for the toughest applications, delivering 350 rpm
  • Dual-mount gear case/reverse mount, permits tight quarter drilling
  • Taps up to 1-14 threaded holes
  • Maximum force develops up to 1670 lb of drill point pressure with a 1 in steel plate
  • Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
  • Line lockout prevents tool from operating if voltage is restored to an interrupted line
  • Motor magnet lockout prevents de-mag during operation
  • Full wave holding power
  • Cast iron table
  • Grounded construction
  • 1-14 table load capacity
