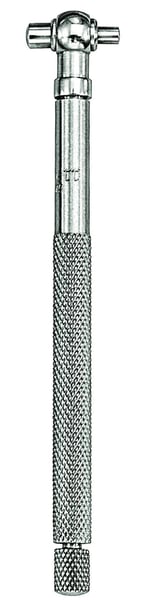

Starrett® 579A Self-Centering Telescoping Gage With Two Telescoping Arms, Satin Chrome, 5/16 to 1/2 in Measuring, Steel


Description

Starrett® Telescoping Gage, Self-Centering, Series: 579, 5/16 to 1/2 in Measuring, Steel, Satin Chrome, 3-1/8 in L x 9/32 in W x 33/64 in H Dimensions

The Starrett 579 Telescoping Gage is used for determining the true size of holes, slots, and recesses up to 6" (150mm). The ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter. The tool must be slightly rocked in the hole being measured to ensure that the tool is on the proper diameter before it is locked and withdrawn. The final hole size is obtained by measuring over the gage contacts with a micrometer. 5/16-1/2" (8-13mm) Range, 2 3/8" (60mm) Handle.

Specifications

Dimensions 3-1/8 in L x 9/32 in W x 33/64 in H
Finish Satin Chrome
Handle Type Rigid
Material Steel
Measuring Range 5/16 to 1/2 in
Series 579
Type Self-Centering

Country of Origin: China

Standards and Approvals: PROP65: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm

Application:
For determining the true size of holes, slots and recesses

Features

  • Precision Ground Radius on each gage provides two-point contact for maximum accuracy
  • Greater range
  • Constant spring tension gives uniform contact pressure
  • Both plungers are easily locked at any desired setting
  • Handles can be individually ordered
  • Handles longer than 12 in (300mm) are available on special order
  • Handles are rigidly attached to the contact plungers and are automatically self-centering
  • Ends of both contacts are hardened and ground to a radius to allow proper clearance on the smallest hole the gage will enter
