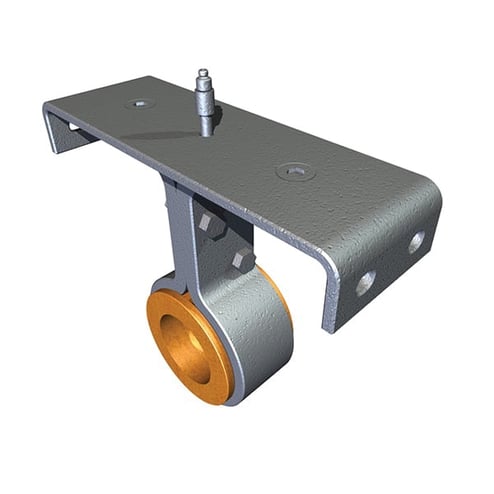

KWS HGR162263 Non-Greasable U-Trough Hanger, 226 Style, 16 in Dia Conveyor, 3 in Coupling


Description

KWS U-Trough Hanger, Non-Greasable, 226 Style, 16 in Conveyor Diameter, 3 in Coupling, 2-1/2 in Mounting Hole Center, 1/2 in Bolt, 17 in Top Frame Length, 5 in Top Frame Width, 3/8 in Top Frame Thickness, Carbon Steel

Style 226 hangers are an inside flush mounted hanger. The combination body bar provides rigidity for light and medium duty applications while allowing minimal obstruction of material flow.

Specifications

Bolt Size 1/2 in
Conveyor Diameter 16 in
Coupling Size 3 in
Material Carbon Steel
Mounting Hole Center 2-1/2 in
Style 226
Top Frame Length 17 in
Top Frame Thickness 3/8 in
Top Frame Width 5 in
Type Non-Greasable

Country of Origin: United States

Standards and Approvals: CEMA Approved, PEMA Approved, PTDA Approved, PTRA Approved

Application:
For light and medium duty applications

Features

  • Not prepared for grease pipe
  • Without Bearing
