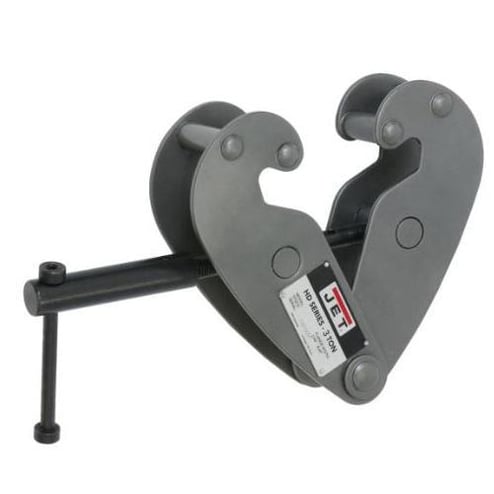

JET® JT9-202730 HD Series Heavy Duty Wide Beam Clamp, 3 ton Load, 12-3/5 in OAW, Steel


Description

JET®, JT9-202730, Beam Clamp, Heavy Duty Wide, Series: HD Series, 3 ton Load, 3-1/7 to 12-3/5 in Bail Opening Width, 12-3/5 in Overall Width, Steel

JET® HD series beam clamps come in capacities from 1 to 5 tons and can accommodate a beam up to 12 in wide. Each JET® beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams. Available up to 5 ton capacities, the HD series has a greater beam flange width for wider beams.

Specifications

Bail Opening Width 3-1/7 to 12-3/5 in
Load Capacity 3 ton
Material Steel
Overall Width 12-3/5 in
Series HD Series
Type Heavy Duty Wide

Warranty: 2 Years

Country of Origin: China

Standards and Approvals: ANSI Specified, ASME B30.17, B30.20

Application:
For use to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I beams, quick mounting of a hoist on a broad range of beams up to 12-3/5 in wide for increased versatility

Features

  • Welded all steel frame and powder coated finish provide maximum durability and protection
  • Clamp jaw is designed to distribute the load away from the beam flange edge increasing safety
  • Load tested to 125% of capacity with certificate
  • JET® HD series beam Clamps come in capacities from 1 ton to 5 tons and can accommodate a beam up to 12 inches wide
  • JET® beam clamp jaw is designed to distribute the load away from the beam flange and adjusts easily for a wide range of standard H or I-beams
  • Used for quick mounting of a hoist or for lifting a broad range of beams up to 12-3/5 inches wide for increased versatility
