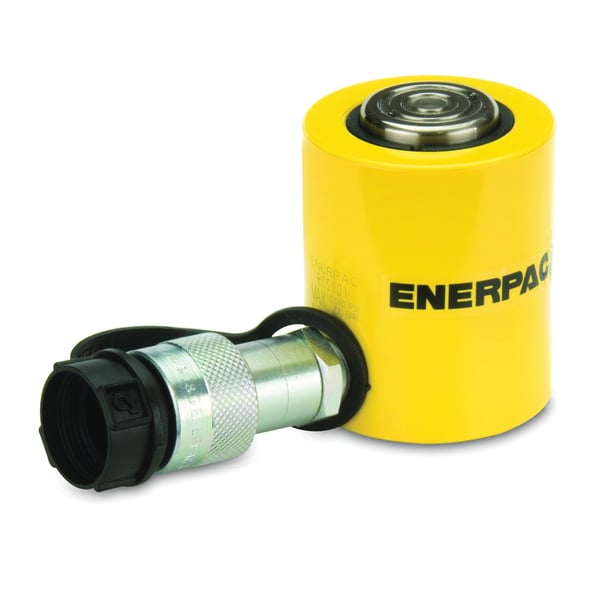

Enerpac® Flat-Jac® RCS-101 Low Height Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 1-1/2 in L Stroke, 3.47 in H Retract, 1-1/2 in Dia Rod, 10000 psi


Description

Enerpac® Flat-Jac® Hydraulic Cylinder, Low Height Single Acting Spring Return, Series: RCS, 10 ton, 1.69 in Dia Bore, 1-1/2 in Stroke, 3.47 in H Retract, 1-1/2 in Rod Dia, 10000 psi, Steel Housing, Baked Enamel, 2-3/4 in OD

Specifications

Bore Size 1.69 in Dia
Capacity 10 ton
Dimensions 2-3/4 in OD
Finish Baked Enamel
Housing Material Steel
Pressure Rating 10000 psi
Retract 3.47 in H
Rod Diameter 1-1/2 in
Series RCS
Stroke Length 1-1/2 in
Type Low Height Single Acting Spring Return

Includes: CR-400 Coupler and Dust Cap

Warranty: Limited

Country of Origin: China

Application:
Repositioning of Satellite Earth Station Antenna

Features

  • Lightweight, low profile design for use in confined spaces
  • Baked enamel finish for increased corrosion resistance
  • Plunger wiper reduces contamination, extending cylinder life
  • Grooved plunger end with threaded holes for mounting tilt saddles
  • Plated steel plungers
  • Maximum power to height ratio
