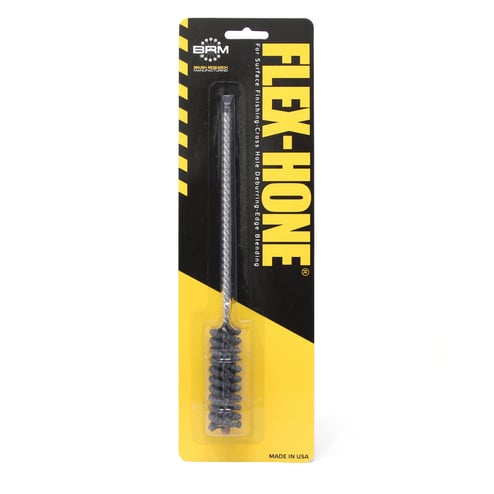

Flex-Hone® BC5880 BC Series Small Diameter Standard Duty Flexible Cylinder Hone, 5/8 in Dia Bore, 2-1/2 in L Abrasive, 8 in OAL, 80 Grit


Description

Flex-Hone® Flexible Cylinder Hone, Small Diameter Standard Duty, Series: BC Series, 5/8 in Bore Dia, 2-1/2 in Abrasive Length, 8 in Overall Length, 80 Grit, 1000 rpm Maximum, Silicon Carbide Abrasive, Applicable Materials: Mild Steel, Stainless Steel, Cast Iron and Other Softer Ferrous

The BRM FLEX-HONE® Tool is a resilient, flexible honing tool with a soft cutting action. It's unique construction allows the abrasive globules or "stones" to float, assuring the tool will be self-centering, self-aligning to the bore and self-compensating for wear. The tool is available in a variety of different grits and sizes ranging from 4 mm to 36 in. Whether your need is cross hole deburring, surface finishing or edge blending there is a FLEX-HONE® Tool designed for you. A non-directional or crosshatched pattern is created on the surface that contains valuable valleys between the plateaus for oil retention. Finer grits can assist with achieving single RA finishes. In Automotive, Hydraulic, Pneumatic or Industrial applications, the FLEX-HONE® Tool will provide a superior surface finish bringing increased product performance, longer product life and less product reject.

Specifications

Abrasive Length 2-1/2 in
Abrasive Material Silicon Carbide
Applicable Materials Mild Steel, Stainless Steel, Cast Iron and Other Softer Ferrous
Bore Diameter 5/8 in
Grit 80
Maximum Speed 1000 rpm
Overall Length 8 in
Series BC Series
Type Small Diameter Standard Duty

Country of Origin: United States

Standards and Approvals: SGS Certified, PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Application:
Surface Finishing, Crosshole Deburring, Edge Blending, Plateau Finishing for any type or size of cylinder, Automotive, Military, Aerospace, Marine, Firearms and General Industries

Features

  • Self centering, self aligning, self compensating for wear
  • Can be used in virtually any rotating spindle
  • Commonly used for finishing, deburring and edge breaking
  • Typically achieves a finish of 45 to 64 uin (1.2 to 1.6 um)
