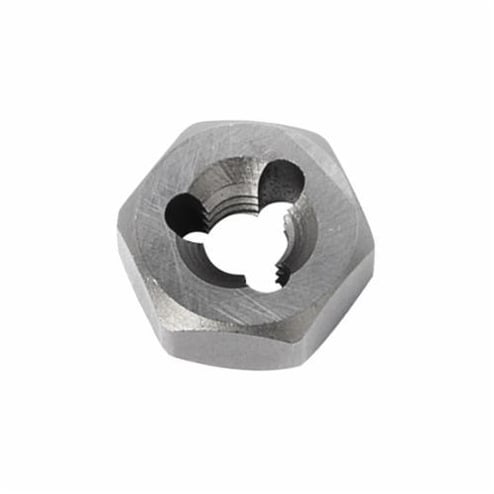

Union Butterfield® 6009134 2025 Rethreading Bolt Die, 9/16-18 UNF Thread, 1/2 in THK, 1-1/16 in OD Die, Chromium Steel


Description

Union Butterfield® Rethreading Bolt Die, Series: 2025, Measurement System: Imperial, 9/16-18 Thread, UNF Thread, 1/2 in Thickness, 1-1/16 in OD Die, 1-1/16 in Hex, Right Thread, Chromium Steel, Bright

Specifications

Die Outside Diameter 1-1/16 in
Finish Bright
Hex Size 1-1/16 in
Material Chromium Steel
Measurement System Imperial
Series 2025
Thickness 1/2 in
Thread Direction Right
Thread Size 9/16-18
Thread Type UNF

Country of Origin: United States

Standards and Approvals: ANSI Specified, CSA Approved

Features

  • Rethreading bolt dies (dienuts) are used for reclaiming or cleaning up threads by hand
  • Bright finish improves chip flow in soft or non-ferrous materials
  • Higher heat resistance as compared to high speed steel
  • It offers good machinability, wear resistance and toughness
