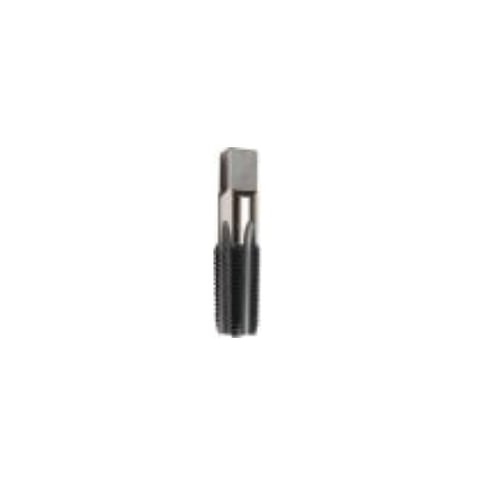

Union Butterfield® 6007471 TN1541 Straight Flute Pipe Tap, 1/2-14 Thread


Description

Union Butterfield® Pipe Tap, Straight Flute, Series: TN1541, Measurement System: Imperial, 1/2-14 Thread, NPT Thread Standard, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 0.688 in Shank Diameter, 0.515 in Square, HSS, TiN Coated, Medium Hook

Specifications

Cutting Direction Right Hand
Finish/Coating TiN Coated
Hook Type Medium
Material HSS
Measurement System Imperial
Number of Flutes 4
Overall Length 3-1/8 in
Series TN1541
Shank Diameter 0.688 in
Square Size 0.515 in
Thread Length 1-3/8 in
Thread Size 1/2-14
Thread Standard NPT
Type Straight Flute

Country of Origin: United States

Standards and Approvals: ANSI Specified, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov, CSA Approved

Application:
For through or blind holes and general purpose applications

Features

  • Medium hook for multi-material tapping
  • Generally used for pipe fittings and couplings in most ferrous and non-ferrous materials
  • The nominal size of a pipe tap is that of the pipe fitting to be tapped and not the actual size of the tap
  • NPT threads require the use of a sealant such as teflon tape or pipe compound to ensure a tight joint
  • TiN coating increases surface hardness and improves tool life
