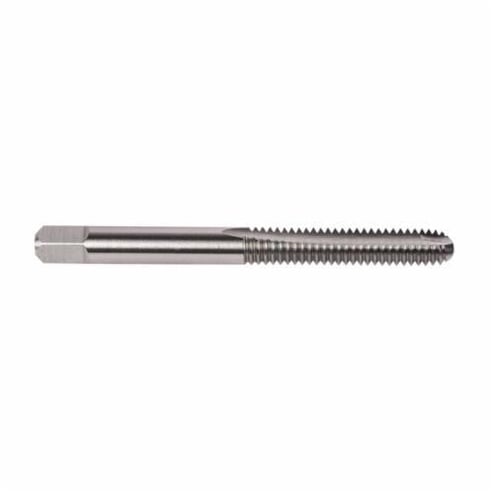

Union Butterfield® 6006806 1534 Relieved Spiral Point Machine Tap, Right Hand Cutting, #8-32 Thread, H3 Thread Limit, Plug Chamfer, 2 Flutes, Bright, HSS


Description

Union Butterfield® Spiral Point Machine Tap, Relieved, Series: 1534, Measurement System: Imperial, UNC, #8-32, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting, 3/4 in Thread Length, 2-1/8 in Overall Length, 0.168 in Shank Dia, Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials Material Application, H3 Thread Limit

Specifications

Chamfer Type Plug
Class of Fit 2B/3B
Cutting Direction Right Hand
Finish/Coating Bright
Material HSS
Material Application Steel, Stainless Steel, Cast Iron, Titanium, Nickel, Copper, Aluminum Magnesium and Synthetic Materials
Measurement System Imperial
Number of Flutes 2
Overall Length 2-1/8 in
Series 1534
Shank Diameter 0.168 in
Thread Length 3/4 in
Thread Limit H3
Thread Size #8-32
Thread Standard UNC
Type Relieved

Country of Origin: United States

Standards and Approvals: ANSI Specified, PROP65: This product contains chemicals known to the State of California to cause cancer. For more information: www.P65Warnings.ca.gov, CSA Approved

Application:
For through hole applications

Features

  • Spiral point taps are used to solve the problem of tap breakage in through hole tapping in a wide variety of materials
  • The angular flutes in the cutting face propel the chips ahead of the cutting zone, thus reducing loading and clogging in the flutes
  • The 1534 style features eccentrically relieved threads with full pitch diameter relief
  • These taps are extremely free cutting, resulting in longer tool life
  • The use of rigid tapping equipment is highly recommended with this style of tap
  • Bright finish flutes improve chip flow in soft and non-ferrous materials
