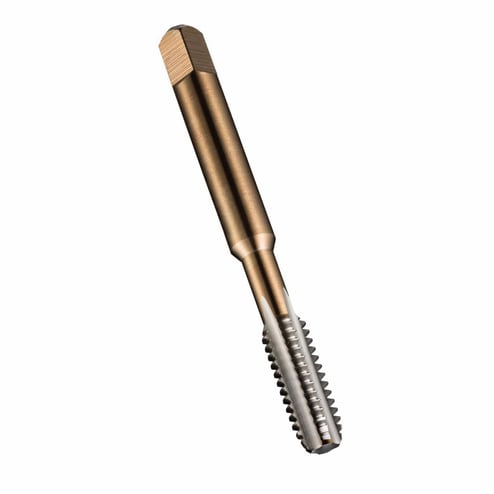

Dormer 5975349 E500 General Purpose Straight Flute Machine Tap, Right Hand Cutting, M16x2 Thread, Bottoming Chamfer, 4 Flutes, Bright, HSS


Description

Dormer Straight Flute Machine Tap, General Purpose, Series: E500, Measurement System: Metric, Coarse, M16x2, Bottoming Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 6H, Right Hand Cutting, 24 mm Thread Length, 102 mm Overall Length, 12.5 mm Shank Dia, Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials Material Application

Specifications

Chamfer Type Bottoming
Class of Fit 6H
Cutting Direction Right Hand
Finish/Coating Bright
Material HSS
Material Application Steel, Copper, Cast Iron, Aluminum Magnesium and Synthetic Materials
Measurement System Metric
Number of Flutes 4
Overall Length 102 mm
Series E500
Shank Diameter 12.5 mm
Thread Length 24 mm
Thread Size M16x2
Thread Standard Coarse
Type General Purpose

Country of Origin: Brazil

Standards and Approvals: ISO 529

Application:
For through or blind hole applications

Features

  • The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications
