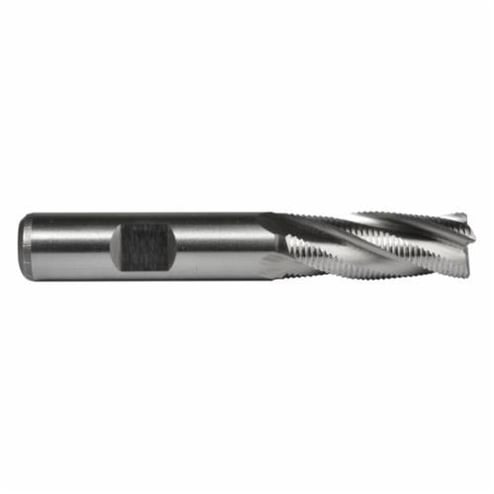

Union Butterfield® 5210020 9002 Center Cutting Regular Length Single End Square End End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Bright


Description

Union Butterfield® End Mill, Center Cutting Regular Length Single End Square End, Series: 9002, 5/8 in Diameter Cutter, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Weldon Flat Shank, HSS-E, Bright

Specifications

Cutter Diameter 5/8 in
Cutting Direction Right Hand
Finish Bright
Flute Type Spiral
Helix Angle 30 deg
Length of Cut 1-5/8 in
Material HSS-E
Number of Flutes 4
Overall Length 3-3/4 in
Series 9002
Shank Diameter 5/8 in
Shank Type Weldon Flat
Type Center Cutting Regular Length Single End Square End

Standards and Approvals: ANSI Specified, CSA Approved

Application:
For slot milling, ramping and finishing operations

Features

  • Cobalt is harder than high speed steel and provides better wear resistance
  • It is commonly used on high tensile alloys
  • Uncoated tools do not feature supportive treatments on the cutting edge
  • They are used at reduced speeds for general applications on nonferrous metals
  • Roughing end mills (also called rougher) have chip-breaking cutting edges that remove material in less time than conventional end mills
  • Square nose end mills create sharp, unrounded cuts
  • For use with aluminum/aluminum alloys, cast iron, nickel/nickel alloys, plastics, steel/steel alloys, titanium/titanium alloys
