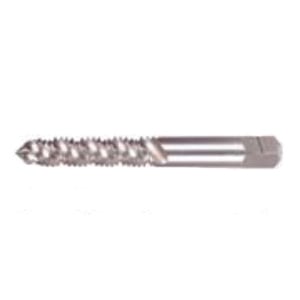

Union Butterfield® 1012922 1788M Union Butterfield® Spiral Flute Tap, Right Hand Cutting, M3.5x0.6 Thread, Plug Chamfer, Right Hand Flute Direction, 2 Flutes, Bright, HSS


Description

Union Butterfield® Union Butterfield® Spiral Flute Tap, Series: T9 Series, Measurement System: Metric, M3.5x0.6, Plug Chamfer, 2 Flutes, HSS, Bright, Class of Fit: 6H/D4, Right Hand Cutting, 11/16 in Thread Length, 2 in Overall Length, 0.141 in Shank Dia, Right Hand Flute Direction, Non-Ferrous Materials Material Application

Specifications

Chamfer Type Plug
Class of Fit 6H/D4
Cutting Direction Right Hand
Finish/Coating Bright
Flute Direction Right Hand
Material HSS
Material Application Non-Ferrous Materials
Measurement System Metric
Number of Flutes 2
Overall Length 2 in
Series 1788M
Shank Diameter 0.141 in
Thread Length 11/16 in
Thread Size M3.5x0.6

Standards and Approvals: ANSI Specified

Application:
For blind hole and through hole applications

Features

  • Similar to the regular spiral flute design of 1582/1586 except that the faster spiral improves the chip drawing action and permits the bridging of larger gaps inside a hole
  • Excellent choice for non-ferrous applications
