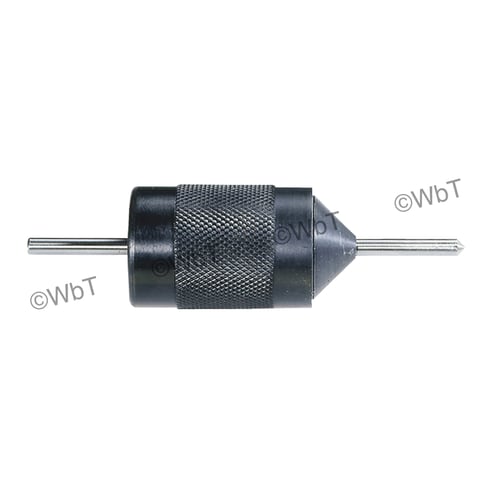

TTC 57-113-550 Universal Transfer Center Punch and Aligner, 3/16 to 5/8 in Tip, Hardened Chrome Vanadium Steel Tip

SKU: TRAV 57-113-550

Manufacturer Part Number: 57-113-550

UPC: 662995829120

Brand: TTC

Description

TTC Transfer Center Punch and Aligner, Universal, 3/16 to 5/8 in Tip, Hardened Chrome Vanadium Steel Tip

Tip Material	Hardened Chrome Vanadium Steel
Tip Size	3/16 to 5/8 in
Type	Universal

Application:

For chamfered, unchamfered or countersunk holes

True diameter of the hole is picked up on the taper and the center will be punched in the true position
Hardened guide cone is placed into the clean edge of the hole to be transferred
Spring loaded knurled body is pushed against the face of the workpiece, perpendicular to the center line of the hole
The punch itself is made of hardened chrome vanadium steel
Punch point is precision ground
