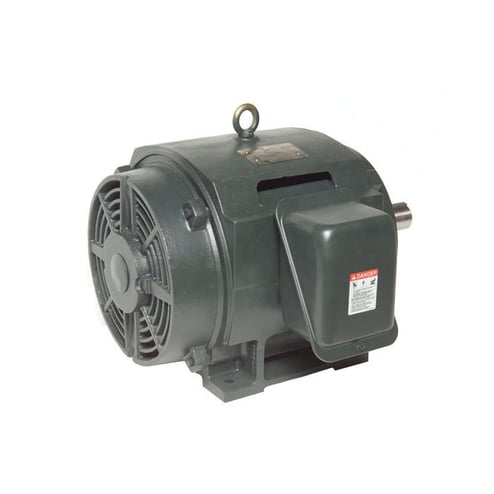

Toshiba 0504DPSA31A-P Continuous-Duty Type TIKK AC Motor With 3-7/8 in L x 1/2 in W x 1/2 in H Key, ODPG Enclosure, 50 hp, 230/460 VAC, 60 Hz, 3 ph Phase, 326T Frame, 1800 rpm Speed, Horizontal Footed Mount


Description

Toshiba AC Motor, Continuous-Duty Type TIKK, Compressor Motors, General Purpose AC Motors Application, Low Voltage Motors, Vector (Inverter) Duty Motors Special Features, 50 hp, 230/460 VAC, 118/59 A, 60 Hz Frequency, 3 ph ph, 1800 rpm Speed, 1 Speed, ODPG Enclosure, 326T Frame, 2-1/8 in Dia x 5-1/4 in L Shaft, CW/CCW Rotation, 1.15 Service Factor, Ball Bearing, 147.5 ft-lb Torque, Horizontal Footed Mounting, -13 to 104 deg F, Insulation Class: Class F, Cast Iron, 4:1 Constant Torque Speed, 1000:1 Variable Torque Speed, 27.76 in L x 16.69 in W x 16.46 in H Dimensions

Toshiba's general purpose, open drip-proof motors are designed to meet the industry's ever-increasing need for improved energy conservation and product reliability. These motors offer some of the highest efficiency and torque ratings while producing some of the lowest vibration ratings in the industry leading to a longer life and greater reliability. Recommended for indoor use, our general purpose, open drip-proof motors are available in High and NEMA Premium® Efficiency.

Specifications

Amperage Rating 118/59 A
Application Type Compressor Motors, General Purpose AC Motors
Bearing Type Ball
Constant Torque Speed Range 4:1
Dimensions 27.76 in L x 16.69 in W x 16.46 in H
Enclosure Type ODPG
Frame 326T
Frequency Rating 60 Hz
Horsepower 50 hp
Insulation Class Class F
Material Cast Iron
Mounting Type Horizontal Footed
Number of Speeds 1
Phase 3
Rotation CW/CCW
Service Factor 1.15
Shaft Size 2-1/8 in Dia x 5-1/4 in L
Special Features Low Voltage Motors, Vector (Inverter) Duty Motors
Speed 1800 rpm
Temperature Rating -13 to 104 deg F
Torque Rating 147.5 ft-lb
Type Continuous-Duty Type TIKK
Variable Torque Speed Range 1000:1
Voltage Rating 230/460 VAC

Includes: Stamped Steel Conduit Box, Cast Iron Bearing Bracket, 304 Stainless Steel Nameplate and Vent

Warranty: 18 Months

Standards and Approvals: ee CC027B/CC020A, NEC Certified

Application:
Pumps, Fans, Conveyors and Material Handling

Features

  • NEMA design B
  • IP22 protection
  • Polyurea base grease
  • Premium efficiency
  • 4-pole
  • T-shaft end
