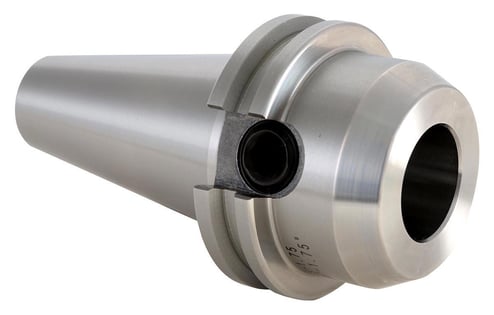

TECHNIKS 22915-1.75 Precision Single End Stubby Length End Mill Holder With Coolant Through Channel, 3/8 in Dia Hole, Tapered Shank, CAT40 Taper, 0.88 in Dia Nose, 1-3/4 in Projection
TECHNIKS 22915-1.75 Precision Single End Stubby Length End Mill Holder With Coolant Through Channel, 3/8 in Dia Hole, Tapered Shank, CAT40 Taper, 0.88 in Dia Nose, 1-3/4 in Projection
SKU: TECHNIK 22915-1.75
Manufacturer Part Number: 22915-1.75
Brand: TECHNIKS
Description
Specifications
| Hole Diameter | 3/8 in |
| Nose Diameter | 0.88 in |
| Overall Length | 4.44 in |
| Projection | 1-3/4 in |
| Shank Type | Tapered |
| Taper Size | CAT40 |
| Type | Precision Single End Stubby Length |
Country of Origin: Taiwan
Features
- TECHNIKS end mill holders are machined to H5 standard ID hole tolerance
- Stubby end mills are balanced to 10000 rpm to save spindle life
- Taper is ground to AT3 for maximum spindle contact
- Lab certified with an individualized performance report
- Balanced to 15000 rpm at G6.3
- 8620 Steel materia
