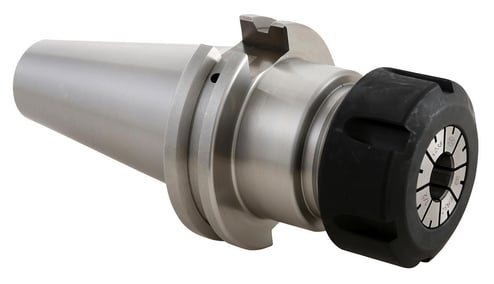

TECHNIKS 22261 Single End V-Flange Collet Chuck, Tapered Shank, ER40 Collet System, ER40 Chuck


Description

TECHNIKS Collet Chuck, Single End V-Flange, 5.83 in Overall Length, 3.02 in Shank Length, 2.48 in Nose Dia, 3.15 in Head Length/Projection, ER40 Collet System, Tapered Shank, ER40 Chuck, CAT40 Taper, 2.48 in Collet Nut Dia, Yes Through Coolant (Yes/No)

ER collet chucks handle a wide range of machining jobs without having to buy new tool holders. Simply choose the right size collet for the job, set tool depth and tighten the collet nut and pull stud to the proper torque using a torque wrench and tightening fixure. Collets are available for - drilling, milling, coolant-thru and high speed applications. Special "DNA" dead nuts accurate collets are used for small drills (6 mm and smaller) to maintain T.I.R. At those sizes. Use "PowerCOAT" nuts to increase the holding power and safety of your tool holders. High holding power extends cutting tool life and improves surface finish.

Specifications

Chuck Size ER40
Collet Nut Diameter 2.48 in
Collet System ER40
Head Length/Projection 3.15 in
Nose Diameter 2.48 in
Overall Length 5.83 in
Shank Length 3.02 in
Shank Type Tapered
Taper Size CAT40
Through Coolant (Yes/No) Yes
Type Single End V-Flange

Includes: PowerCOAT Slotted Nut

Country of Origin: Taiwan

Application:
For drilling, milling and high speed applications

Features

  • Collet chucks are balanced to 25000 rpm at G2.5 tolerance
  • They are individually lab tested for accuracy and balance and come with their individual performance report
  • Holders achieve 0.0001 in or less T.I.R as measured from the taper to the collet pocket
  • PowerCOAT nut included for 75% more clamping power
