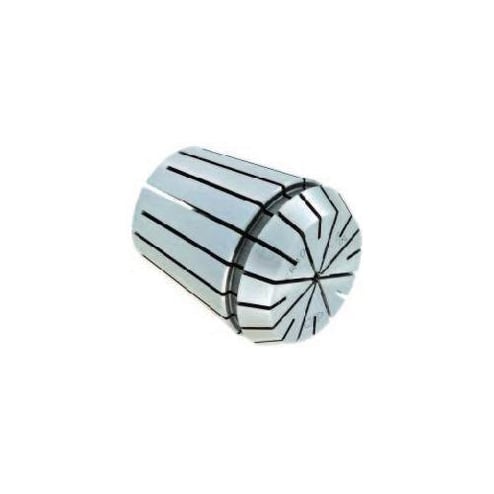

TECHNIKS 04225-7/16 Precision Single Angle Collet With Coolant Through, ER25, 1.34 in OAL, 0.3981 to 0.4375 in Capacity, 1.34 in L Clamping Hole, 1.02 in Dia Body, 1.02 in Dia Head
TECHNIKS 04225-7/16 Precision Single Angle Collet With Coolant Through, ER25, 1.34 in OAL, 0.3981 to 0.4375 in Capacity, 1.34 in L Clamping Hole, 1.02 in Dia Body, 1.02 in Dia Head
SKU: TECHNIK 04225-7/6
Manufacturer Part Number: 04225-7/16
Brand: TECHNIKS
Description
Specifications
| Body Diameter | 1.02 in |
| Capacity | 0.3981 to 0.4375 in |
| Clamping Hole Length | 1.34 in |
| Head Diameter | 1.02 in |
| Overall Length | 1.34 in |
| Size | ER25 |
| Suitable For Use With | DR, RD, ESX and AR Series Collet Chuck |
| Type | Precision Single Angle |
Country of Origin: Taiwan
Features
- Precision collets have at most 0.0002 in T.I.R. as a standard quality guarantee
- Made from high carbon bearing steel and heat treated for improved flexibility and longer life
- For best results, use with a PowerCOAT nut to improve holding power and extend tool life
