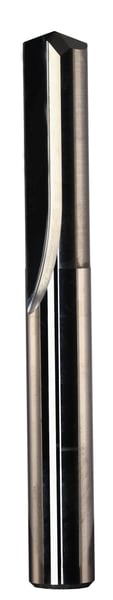

SGS® 56007 106 General Purpose Straight Flute Drill Bit, #7 Drill - Wire, 0.201 in Drill - Decimal Inch, 3XD D Cutting, 2 Flutes, Micrograin Solid Carbide


Description

SGS® Straight Flute Drill Bit, General Purpose, Series: 106, Imperial, #7 Drill - Wire, 0.201 in Drill - Decimal Inch, 2-1/4 in Overall Length, 3XD Cutting Depth, 2 Flutes, Straight Flute, 1-3/8 in Flute Length, 0.201 in Shank, Straight Shank, 140 deg Point, Standard Point, Right Hand Cutting Direction, Micrograin Solid Carbide Cutting Edge, Applicable Materials: Cast Iron, Hardened Steel and Steel, No Through Coolant, Micrograin Solid Carbide, Uncoated

Specifications

Applicable Materials Cast Iron, Hardened Steel and Steel
Cutting Depth 3XD
Cutting Direction Right Hand
Cutting Edge Material Micrograin Solid Carbide
Drill Diameter Measurement System Imperial
Drill Size - Decimal Inch 0.201 in
Drill Size - Wire #7
Finish Uncoated
Flute Length 1-3/8 in
Flute Type Straight
Material Micrograin Solid Carbide
Number of Flutes 2
Overall Length 2-1/4 in
Point Angle 140 deg
Point Type Standard
Series 106
Shank Size 0.201 in
Shank Type Straight
Through Coolant (Yes/No) No
Type General Purpose

Country of Origin: United States

Standards and Approvals: DIN 6539

Application:
Aerospace, Medical, Power Generation, Automotive, Mold and Die, Castings and Foundries and General Engineering
