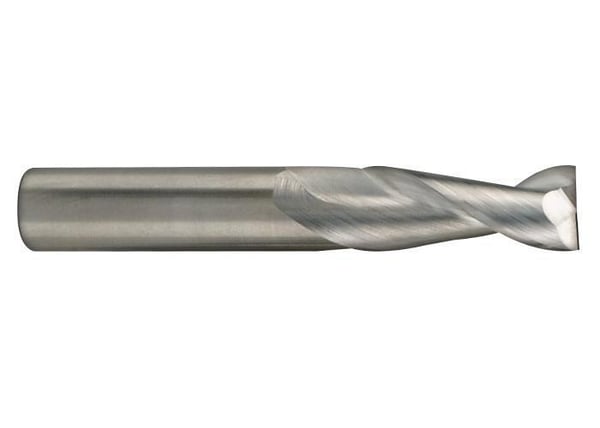

SGS® 34628 47 Series Fractional High Performance Regular Length Square End High Performance End Mill, 1 in Dia Cutter, 2 in Length of Cut, 2 Flutes, 1 in Dia Shank, 4-1/2 in OAL, Uncoated


Description

SGS® High Performance End Mill, Fractional High Performance Regular Length Square End, Series: 47 Series, 1 in Diameter Cutter, 4-1/2 in Overall Length, 2 in Length of Cut, 2 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 35 deg Helix Angle, Straight Shank, 2-1/2 in Shank Length, Micrograin Solid Carbide, Uncoated

Specifications

Cutter Diameter 1 in
Cutting Direction Right Hand
Finish Uncoated
Flute Type Spiral
Helix Angle 35 deg
Length of Cut 2 in
Material Micrograin Solid Carbide
Number of Flutes 2
Overall Length 4-1/2 in
Series 47 Series
Shank Diameter 1 in
Shank Length 2-1/2 in
Shank Type Straight
Type Fractional High Performance Regular Length Square End

Country of Origin: United States

Application:
Aerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation

Features

  • Circular land reduces edge aggressiveness for varied speed and feed rates
  • 2 Flutes effectively manage the large size and volume of chips produced during the aggressive machining process
  • Excellent balance at high speeds and aggressive plunging capability
  • Recommended for materials <= 150 Bhn (<= 7 HRc)
