SGS® 30539 05S Fractional Square End End Mill, 5/16 in Dia Cutter, 13/16 in Length of Cut, 3 Flutes, 5/16 in Dia Shank, 2-1/2 in OAL, Uncoated


Description

SGS® End Mill, Fractional Square End, Series: 05S, 5/16 in Cutter Dia, 2-1/2 in Overall Length, 13/16 in Length of Cut, 3 Flutes, Spiral Flute, 5/16 in Shank Dia, Right Hand Cutting, 30 deg Helix Angle, Straight Shank, 1.688 in Shank Length, Micrograin Solid Carbide, Uncoated

Specifications

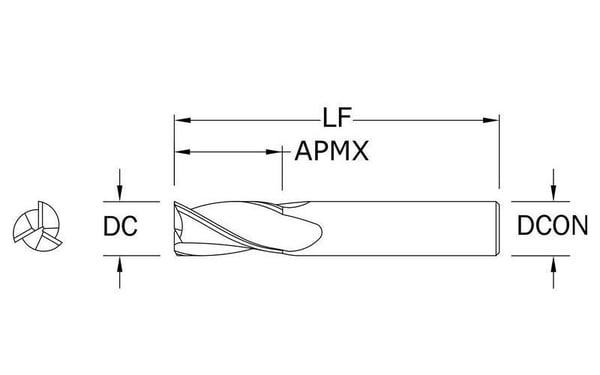

Cutter Diameter 5/16 in
Cutting Direction Right Hand
Finish Uncoated
Flute Type Spiral
Helix Angle 30 deg
Length of Cut 13/16 in
Material Micrograin Solid Carbide
Number of Flutes 3
Overall Length 2-1/2 in
Series 05S
Shank Diameter 5/16 in
Shank Length 1.688 in
Shank Type Straight
Type Fractional Square End

Country of Origin: United States

Application:
Aerospace, Automotive, Castings and Foundries, General Engineering, Medical, Mold and Die and Power Generation
