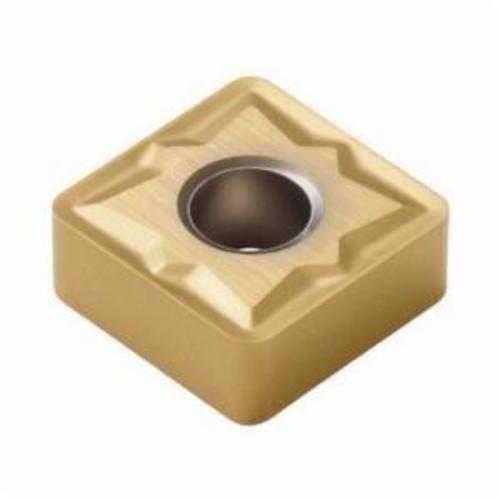

Seco 00098982 Turning Insert, ANSI Code: SNMG433-MR3 CP500, SNMG Insert, Material Grade: M, 120412 Insert, Squared Shape, 12 Seat, Negative Rake, Neutral Cutting, For Use On Stainless Steel, Carbide, Manufacturer's Grade: CP500

Seco Turning Insert, SNMG Insert, 120412 Insert, Squared, 5 mm Maximum Depth of Cut, 12.7 mm Inscribed Circle, 4.76 mm Thickness, 12.7 mm Width, 12.7 mm Length, 12 Seat, Negative Rake, MR3 Chipbreaker, 1.2 mm Corner Radius, 5.15 mm Hole Dia, Manufacturer's Grade: CP500, ANSI Code: SNMG433-MR3 CP500, ISO Code: SNMG120412-MR3 CP500, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M, For Use On: Stainless Steel

The Turning insert SNMG120412-MR3 CP500 features a negative type geometry with a clearance angle major of 0 degrees. It is made from a carbide PVD grade CP500. The insert has eight cutting edges and a corner radius of 1.2 mm. With a cutting edge effective length of 11.5 mm, the insert is designed with a neutral hand orientation. It is primarily intended for steel and stainless steel applications and is partially applicable for cast irons, non-ferrous materials, superalloys and titanium, as well as hard materials. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
