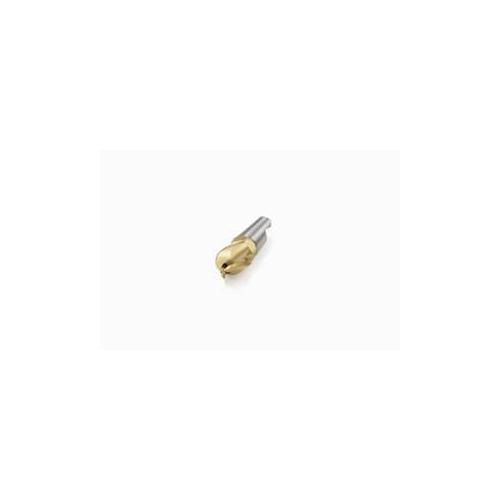

Seco 00096009 MM08 Tip Inserts, MM08/ MM08 Milling Tip Style, End Milling Tip, Carbide, 0.156 in Corner Radius, Manufacturer's Grade: F40M, (3,3) Flutes, C5 Material Grade


Description

Seco, 00096009, Tip Inserts, Series: MM08, MM08/ MM08 Milling Tip, End Milling Tip, 0.312 in Diameter Cutting, 0.394 in Maximum Depth of Cut, 3,3 Flutes, M03 Chipbreaker, 0.156 in Corner Radius, Manufacturer's Grade: F40M, Carbide, Material Grade: C5

Specifications

Chipbreaker M03
Corner Radius 0.156 in
Cutting Diameter 0.312 in
Manufacturer's Grade F40M
Material Carbide
Material Grade C5
Maximum Depth of Cut 0.394 in
Milling Tip Style MM08/ MM08
Milling Tip Type End
Number of Flutes 3,3
Series MM08

Country of Origin: Sweden

Standards and Approvals: PROP65

Features

  • A unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security,
  • PVD-coated grade for fine to medium rough milling, first choice for milling with small feeds and/or low cutting speeds
  • Excellent for milling when there is a risk of vibrations and when coolant is used
  • Recommended for machining superalloys
