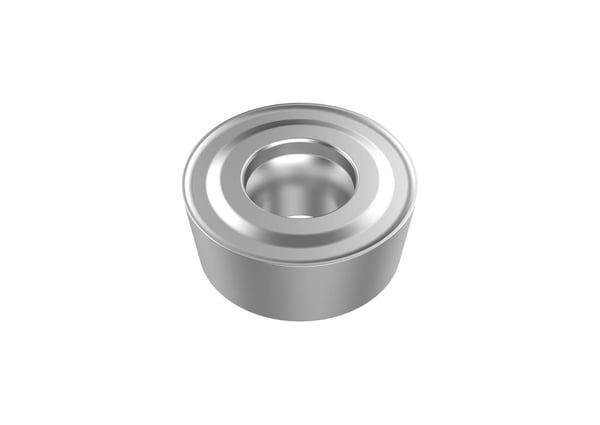

Seco 00093929 Turning Insert, ANSI Code: RCMT1606M0-F2 HX, RCMT Insert, Material Grade: N, 1606M0 Insert, Round Shape, 16 Seat, Positive Rake, Neutral Cutting, For Use On Non-Ferrous Metals, Carbide, Manufacturer's Grade: HX


Description

Seco Turning Insert, RCMT Insert, 1606M0 Insert, Round, 6.5 mm Maximum Depth of Cut, 16 mm Inscribed Circle, 6.35 mm Thickness, 16 Seat, Positive Rake, F2 Chipbreaker, 5.6 mm Hole Dia, Manufacturer's Grade: HX, ANSI Code: RCMT1606M0-F2 HX, ISO Code: RCMT1606M0-F2 HX, 7 deg Relief Angle, Neutral Cutting, Carbide, Uncoated, Material Grade: N, For Use On: Non-Ferrous Metals

The Turning insert RCMT1606M0-F2 HX features a positive type with a clearance angle major of 7 degrees. It has four cutting edges and a neutral insert hand. With an insert diameter of 16 mm, the insert is made from an uncoated carbide grade HX. The specifications define its geometry and material composition precisely for turning operations. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

ANSI Code RCMT1606M0-F2 HX
Chipbreaker F2
Cutting Direction Neutral
Finish Uncoated
For Use On Non-Ferrous Metals
Hole Diameter 5.6 mm
Inscribed Circle 16 mm
Insert Size 1606M0
Insert Style RCMT
ISO Code RCMT1606M0-F2 HX
Manufacturer's Grade HX
Material Carbide
Material Grade N
Maximum Depth of Cut 6.5 mm
Rake Positive
Relief Angle 7 deg
Seat Size 16
Shape Round
Thickness 6.35 mm

Country of Origin: Sweden

Application:
Finishing Applications
