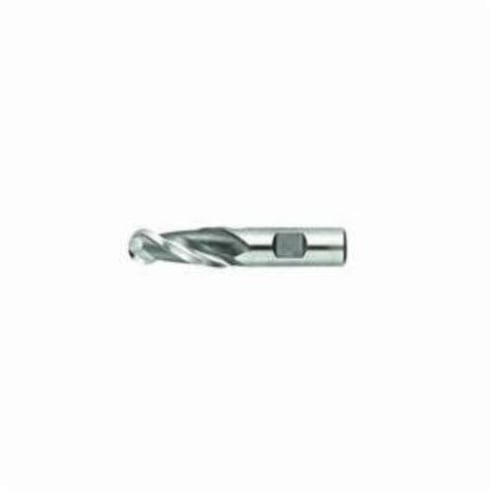

Seco Niagara Cutter N91326 AB910 Ball End Center Cutting High Helix Short Length Single End End Mill, 1 in Dia Cutter, 2 in Length of Cut, 2 Flutes, 1 in Dia Shank, 4-1/2 in OAL, Uncoated


Description

Seco Niagara Cutter End Mill, Ball End Center Cutting High Helix Short Length Single End, Series: AB910, 1 in Diameter Cutter, 4-1/2 in Overall Length, 2 in Length of Cut, 2 Flutes, Spiral Flute, 1 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Weldon Flat Shank, ANSI Code: AB910-1.000-D2-B.3-Z2, ISO Code: AB9101.000D2B.3Z2, HSS, Uncoated

Specifications

ANSI Code AB910-1.000-D2-B.3-Z2
Cutter Diameter 1 in
Cutting Direction Right Hand
Finish Uncoated
Flute Type Spiral
Helix Angle 37 deg
ISO Code AB9101.000D2B.3Z2
Length of Cut 2 in
Material HSS
Number of Flutes 2
Overall Length 4-1/2 in
Series AB910
Shank Diameter 1 in
Shank Type Weldon Flat
Type Ball End Center Cutting High Helix Short Length Single End

Country of Origin: United States

Application:
For slotting, pocketing and contour milling applications in aluminum and non-ferrous materials

Features

  • High speed steel (HSS) provides good wear resistance, it is commonly used for general purpose applications on both ferrous and non-ferrous materials
  • Uncoated tools do not feature supportive treatments on the cutting edge, they are used at reduced speeds for general applications on non-ferrous metals
  • 90 deg cutting edge
  • 2.281 in L minimum clamping
  • 37 deg axial rake
  • 13 deg radial rake
  • 37 deg helix provides the efficient cutting action and chip evacuation required to machine aluminum and other non-ferrous materials
  • Cylindrical margin to eliminate chatter
  • Two flutes offer better chip-carrying capacity than end mills with more flutes, enhancing the tool's ability to remove material
  • Ball nose end mills create contoured surfaces
  • D - Cylindrical tool shape
