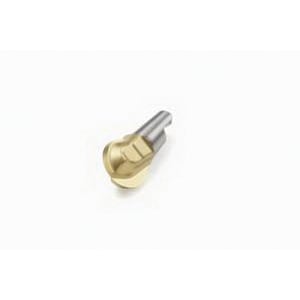

Seco 00091006 Minimaster™ Milling Tip Insert, ANSI Code: MM12-0.630-B120P-M07 F30M, MM12 Milling Tip Style, Ball Nose Milling Tip, Solid Carbide, 8 mm Corner Radius, Manufacturer's Grade: F30M, 2 Flutes


Description

Seco Milling Tip Insert, Series: Minimaster™, MM12 Milling Tip, Ball Nose, 16 mm Cutting Dia, 8 mm Maximum Depth of Cut, 2 Flutes, M07, 8 mm Corner Radius, Manufacturer's Grade: F30M, ANSI Code: MM12-0.630-B120P-M07 F30M, ISO Code: MM12-16016-B120P-M07 F30M, Solid Carbide, PVD-TiAlN+TiN Coated

Specifications

ANSI Code MM12-0.630-B120P-M07 F30M
Corner Radius 8 mm
Cutting Diameter 16 mm
Finish PVD-TiAlN+TiN Coated
Geometry M07
ISO Code MM12-16016-B120P-M07 F30M
Manufacturer's Grade F30M
Material Solid Carbide
Maximum Depth of Cut 8 mm
Milling Tip Style MM12
Milling Tip Type Ball Nose
Number of Flutes 2
Series Minimaster™

Country of Origin: Sweden

Application:
For milling stainless steel, hardened steel and super alloys
