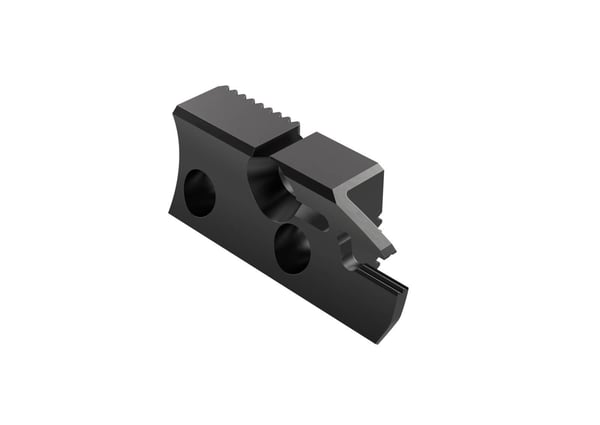

Seco 00089102 MDT External Indexable Turning Cartridge, FR/L/GR/L Tool Holder, LCM.. Insert, LCM 1303M0-0300-MP, LCMF 130304-0300-FT, LCMF 1303M0-0300-MP and LCMR 130304-0300-FT Insert, Left Hand Cutting, 12 mm Max Depth of Cut


Description

Seco Indexable Turning Cartridge, External, Series: MDT, Tool Holder Style Compatibility: FR/L/GR/L, LCM.. Insert, Insert Compatibility: LCM 1303M0-0300-MP, LCMF 130304-0300-FT, LCMF 1303M0-0300-MP and LCMR 130304-0300-FT, Left Hand Cutting, 12 mm Maximum Depth of Cut, Clamp Insert Holding Method

The Turning groove holder V21-CKL1303R050033 features an external version with a blade V21-axial shank connection to LC 1303. It is designed for left-direction cutting with a functional length of 13.2 mm. The holder is configured specifically for groove turning operations, ensuring compatibility with the specified blade and shank interface. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.

Specifications

Cutting Direction Left Hand
Insert Compatibility LCM 1303M0-0300-MP, LCMF 130304-0300-FT, LCMF 1303M0-0300-MP and LCMR 130304-0300-FT
Insert Holding Method Clamp
Insert Style LCM..
Maximum Depth of Cut 12 mm
Series MDT
Tool Holder Style Compatibility FR/L/GR/L
Type External

Country of Origin: India

Application:
For grooving, profiling, turning, parting off and threading
