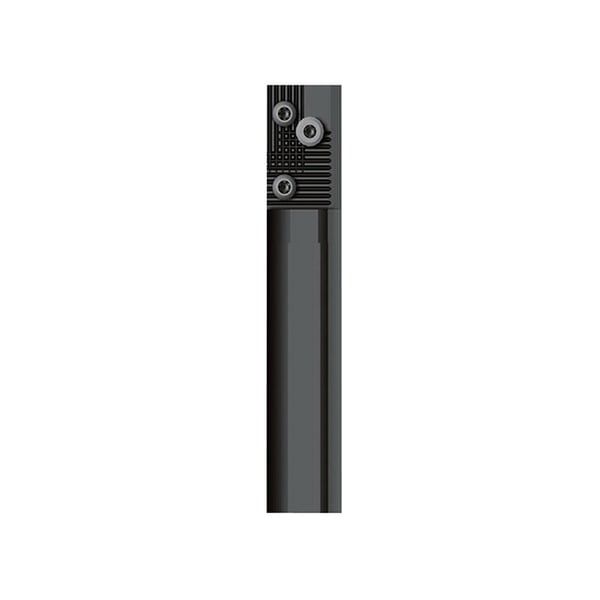

Seco 00089089 MDT Indexable Turning Tool Holder, ANSI Code: A32S-FR-V21, FR/L Tool Holder, LC..13.. Insert, Right Hand Cutting, 30 mm Cylindrical Shank, 90 deg Lead Angle, 250 mm OAL


Description

Seco Indexable Turning Tool Holder, Series: MDT, FR/L Tool Holder, 250 mm Overall Length, Cylindrical Shank, 30 mm Shank, Insert Compatibility: LC..13.., Right Hand Cutting, 90 deg Lead Angle, 43 mm Head Length, ANSI Code: A32S-FR-V21, ISO Code: A32S-FR-V21, Steel

The Seco MDT (Multi-Directional turning) is universally suitable for variety of applications including grooving, profiling, turning, parting off and threading. The unique Secoloc™ clamping delivers the best stability and safety in addition to high productivity and performance. Applications include turning parts with many different diameters, complicated profiles and grooves, replacing the need for several standard and special tools with a single Seco MDT. Further savings can be achieved through fewer tool changes and reduced tool stock. The unique insert clamping method - Secoloc™ combines a V-shaped top clamp with serrated contact surfaces between the underside of the insert and the tool holder for superb stability. The relatively long insert also increases stability. MDT is available also in combination with Jetstream Tooling, a high pressure cooling system directing coolant supply to the cutting edge.

Specifications

ANSI Code A32S-FR-V21
Cutting Direction Right Hand
Head Length 43 mm
Insert Compatibility LC..13..
ISO Code A32S-FR-V21
Lead Angle 90 deg
Material Steel
Overall Length 250 mm
Series MDT
Shank Size 30 mm
Shank Type Cylindrical
Tool Holder Style FR/L

Country of Origin: India

Application:
For grooving, profiling, turning, parting off and threading
