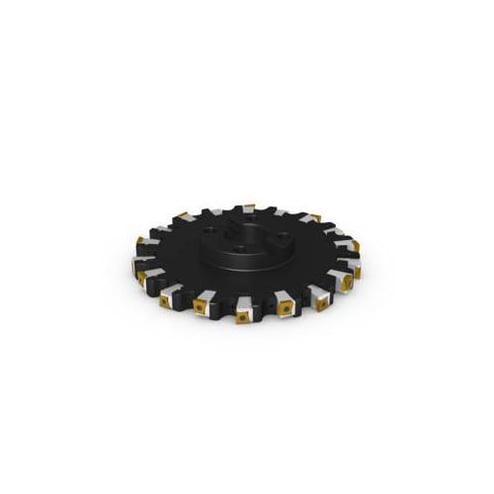

Seco 02827424 R335.25 Indexable Slotting Cutter, Arbor Connection, 12 in Dia Cutting x 12 mm W Cutting, Right Hand Cutting, LNK Insert, 32 mm Dia Arbor, 44.8 mm Max Depth of Cu


Description

Seco, 02827424, Slotting Cutter, Indexable, Series: R335.25, 12 in Diameter Cutting, 12 mm Cutting Width, LNK Insert, 8 Inserts, Right Hand Cutting Direction, Positive Rake, 32 mm Arbor, Arbor Connection, 44.8 mm Maximum Depth of Cut, Steel

Specifications

Arbor Hole Diameter 32 mm
Connection Type Arbor
Cutting Diameter 12 in
Cutting Direction Right Hand
Cutting Width 12 mm
Insert Compatibility LNK
Insert Style LNK
Material Steel
Maximum Depth of Cut 44.8 mm
Number of Inserts 8
Rake Positive
Series R335.25
Shank Type Arbor
Type Indexable

Country of Origin: France

Application:
For tackles any challenges brought by disc milling applications

Features

  • Developed with extensive research to ensure they meet the needs to today's materials and machining processes, tackles any challenges brought by disc milling applications
