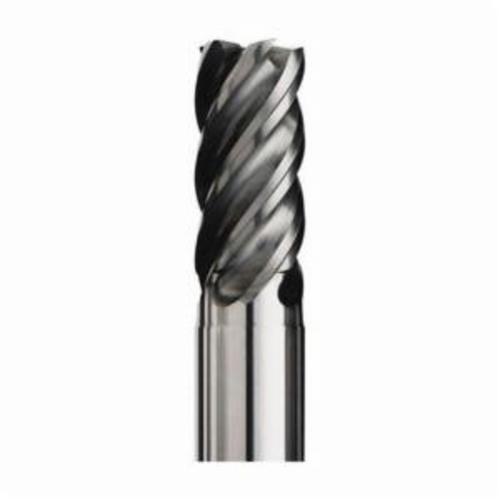

Seco JABRO® HPM 02828220 HPM JHP951 Center Cutting Curved Helix High Performance Single End Mill, 10 mm Dia Cutter, 0.011 mm Corner Radius, 22 mm Length of Cut, 4 Flutes, 10 mm Dia Shank, 70 mm OAL, SIRA/PVD Coated


Description

Seco JABRO® HPM End Mill, Center Cutting Curved Helix High Performance Single End, Series: HPM JHP951, 10 mm Diameter Cutter, 0.011 mm Corner Radius, 70 mm Overall Length, 22 mm Length of Cut, 4 Flutes, Spiral Flute, 10 mm Shank Diameter, Right Hand Cutting Direction, 40/42 deg Helix Angle, Weldon Flat Shank, ANSI Code: JHP951100E2C.3Z4-SIRA, ISO Code: JHP951100E2C.3Z4-SIRA, Solid Carbide, SIRA/PVD Coated

High performance machining (HPM) is a machining strategy where high metal removal rates can be achieved by using conventional feeds and speeds in combination with very high ae and ap values. The result is high productivity (material removal rates up to 400% higher compared to conventional machining) and the lowest possible production costs. The HPM range consists of tools for soft, medium and hard steel, stainless steel, super alloys and titanium.

Specifications

ANSI Code JHP951100E2C.3Z4-SIRA
Corner Radius 0.011 mm
Cutter Diameter 10 mm
Cutting Direction Right Hand
Finish SIRA/PVD Coated
Flute Type Spiral
Helix Angle 40/42 deg
ISO Code JHP951100E2C.3Z4-SIRA
Length of Cut 22 mm
Material Solid Carbide
Number of Flutes 4
Overall Length 70 mm
Series HPM JHP951
Shank Diameter 10 mm
Shank Type Weldon Flat
Type Center Cutting Curved Helix High Performance Single End

Country of Origin: Netherlands

Application:
Radial and Ramping Applications
