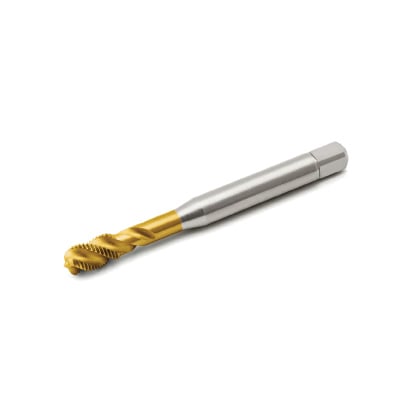

Seco 02880735 Threadmaster™ MTH-V043 Spiral Flute Tap, Right Hand Cutting, 3/8-24 Thread, H6 Thread Limit, Modified Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, TiN Coated, Powdered Metal


Description

Seco Spiral Flute Tap, Series: Threadmaster™ MTH-V043, Measurement System: Imperial, UNF Thread Standard, 3/8-24 Thread, Modified Bottoming Chamfer, 3 Flutes, Powdered Metal, TiN Coated, Class of Fit: 2B, Right Hand Cutting Direction, 15 mm Thread Length, 100 mm Overall Length, 10 mm Shank Diameter, 63 mm Shank Length, Right Hand Flute Direction, H6 Thread Limit, Stainless Steel, Steel, Aluminum Alloy and Copper Alloy Material Application, No Through Coolant

Specifications

Chamfer Type Modified Bottoming
Class of Fit 2B
Cutting Direction Right Hand
Finish/Coating TiN Coated
Flute Direction Right Hand
Material Powdered Metal
Material Application Stainless Steel, Steel, Aluminum Alloy and Copper Alloy
Measurement System Imperial
Number of Flutes 3
Overall Length 100 mm
Series Threadmaster™ MTH-V043
Shank Diameter 10 mm
Shank Length 63 mm
Thread Length 15 mm
Thread Limit H6
Thread Size 3/8-24
Thread Standard UNF
Through Coolant (Yes/No) No

Country of Origin: Germany

Standards and Approvals: DIN 2184-1

Application:
For blind hole applications

Features

  • Optimized threading operations
  • Versatility of combined processes
  • Reduced tooling inventory and cost
  • Superior thread surfaces
  • High efficiency chip evacuation
  • Longer tool life
