Seco 00083589 MM10 Tip Inserts, MM10 Milling Tip Style, End Mill Milling Tip, Carbide, 0.117 in Corner Radius, Manufacturer's Grade: F30M


Description

Seco, 00083589, Tip Inserts, Series: MM10, MM10 Milling Tip, End Mill Milling Tip, 0.39 in Diameter Cutting, 0.268 in Maximum Depth of Cut, MD04 Chipbreaker, 0.117 in Corner Radius, Manufacturer's Grade: F30M, Carbide

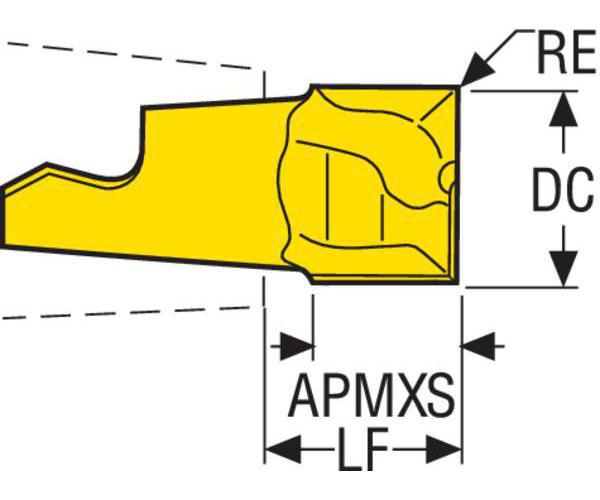

Specifications

Chipbreaker MD04
Corner Radius 0.117 in
Cutting Diameter 0.39 in
Manufacturer's Grade F30M
Material Carbide
Maximum Depth of Cut 0.268 in
Milling Tip Style MM10
Milling Tip Type End Mill
Series MM10

Country of Origin: Sweden

Standards and Approvals: PROP65

Application:
Suitable for milling stainless steel, hardened steel and superalloys

Features

  • A unique, versatile end milling system that can combine different solutions for optimum accessibility and maximum stability and security,
  • Basic grade for Minimaster inserts and thread milling inserts,also suitable for milling stainless steel, hardened steel and superalloys
