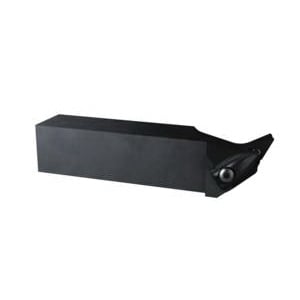

Seco 83462 Indexable Turning Tool Holder, ANSI Code: DVPNR-20-3D, DVPN Tool Holder, VN..1604.. Insert, Right Hand Cutting, 31.8 mm W Square Shank, 117.5 deg Lead Angle, Negative Rake, 152.4 mm OAL


Description

Seco Indexable Turning Tool Holder, DVPN Tool Holder, 152.4 mm Overall Length, Square Shank, 31.8 mm W Shank, Insert Compatibility: VN..1604.., 4 Insert Seat, Right Hand Cutting, 9.53 mm Inscribed Circle, 38.1 mm Back of Bar to Cutting Edge, 117.5 deg Lead Angle, 45 mm Head Length, ANSI Code: DVPNR-20-3D, Negative Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code DVPNR-20-3D
Back of Bar to Cutting Edge 38.1 mm
Cutting Direction Right Hand
Head Length 45 mm
Inscribed Circle 9.53 mm
Insert Compatibility VN..1604..
Insert Seat Size 4
Lead Angle 117.5 deg
Material Steel
Overall Length 152.4 mm
Rake Negative
Shank Size 31.8 mm W
Shank Type Square
Tool Holder Style DVPN

Country of Origin: Sweden
