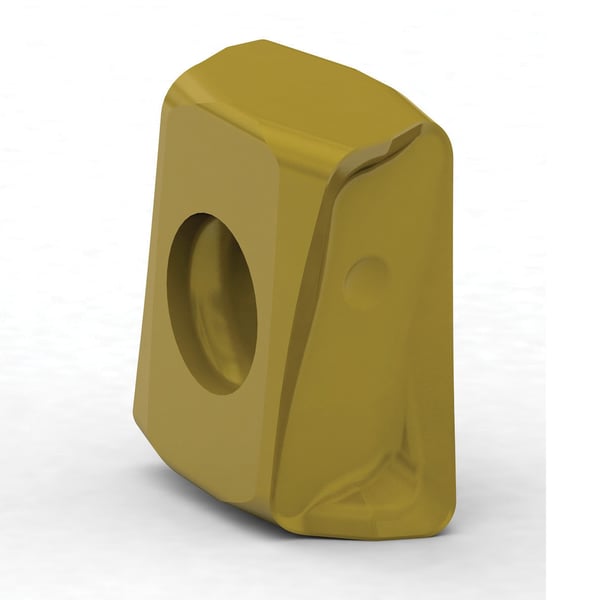

Seco 02827593 Indexable Milling Insert, ANSI Code: LOEX080412TR-M08 F40M, LOEX Insert, 080412 Insert, Carbide, Manufacturer's Grade: F40M, Rectangle Shape


Description

Seco Indexable Milling Insert, LOEX Insert, 080412 Insert, Rectangle Shape, 6.5 mm Thickness, 4.4 mm Width, 9.3 mm Length, M08 Chipbreaker, 1.2 mm Corner Radius, Positive Rake, 3 mm Diameter Hole, Manufacturer's Grade: F40M, ANSI Code: LOEX080412TR-M08 F40M, Right Hand of Insert, Carbide, PVD-TiAlN/NbN Coated, Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials Material Application

Specifications

ANSI Code LOEX080412TR-M08 F40M
Chipbreaker M08
Corner Radius 1.2 mm
Finish PVD-TiAlN/NbN Coated
Hand of Insert Right
Hole Diameter 3 mm
Insert Size 080412
Insert Style LOEX
Length 9.3 mm
Manufacturer's Grade F40M
Material Carbide
Material Application Cast Iron, Non-Ferrous Metals, Plastics and Tough-to-Machine Materials
Rake Positive
Shape Rectangle
Thickness 6.5 mm
Width 4.4 mm

Country of Origin: Sweden

Application:
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
