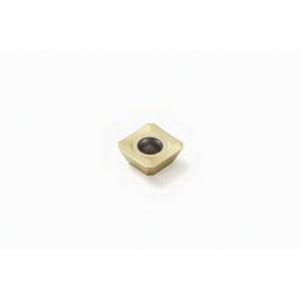

Seco 00081503 Indexable Milling Insert, ANSI Code: SEEX09T3AFN-M05 F40M, SEEX Insert, 09T3 Insert, Carbide, Manufacturer's Grade: F40M, Squared Shape, Material Grade: C5


Description

Seco Indexable Milling Insert, SEEX Insert, 09T3 Insert, Squared, 9.5 mm Inscribed Circle, 4 mm Thickness, 9.5 mm Width, 9.5 mm Length, M05 Chipbreaker, Neutral Rake, Manufacturer's Grade: F40M, ANSI Code: SEEX09T3AFN-M05 F40M, ISO Code: SEEX09T3AFN-M05 F40M, Neutral Hand, Carbide, PVD-TiAlN+TiN Coated, Material Grade: C5, Cast Iron, Plastics and Non-Ferrous Metals Material Application

Specifications

ANSI Code SEEX09T3AFN-M05 F40M
Chipbreaker M05
Finish PVD-TiAlN+TiN Coated
Hand of Insert Neutral
Inscribed Circle 9.5 mm
Insert Size 09T3
Insert Style SEEX
ISO Code SEEX09T3AFN-M05 F40M
Length 9.5 mm
Manufacturer's Grade F40M
Material Carbide
Material Application Cast Iron, Plastics and Non-Ferrous Metals
Material Grade C5
Rake Neutral
Shape Squared
Thickness 4 mm
Width 9.5 mm

Country of Origin: Sweden

Application:
For high speed applications on cast iron, non-ferrous materials, plastics and other tough to machine materials
