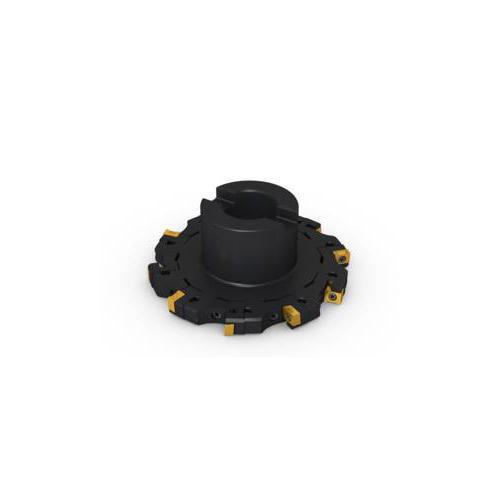

Seco 00079782 R335.18 Arbor Milling Cutter, Arbor Connection, 3.962 in Dia Cutting, Right Cutting, LNK 06 Insert, 1 in Dia Arbor Hole, 1.014 in Max Depth of Cut, R335.18 Toolholder

Seco, 00079782, Milling Cutter, Arbor, Series: R335.18, 3.962 in Diameter Cutting, LNK 06 Insert, Insert Compatibility: LNKT 060504PPN-E05/ LNKT 060504PPTN-M06/ LNKT 060508PPN-E05/ LNKT 060508PPTN-M06/ LNKT 060516PPN-E05/ LNKT 060516PPTN-M06/ LNKT 060531PPN-E05/ LNKT 060531PPTN-M06/ LNKT 060540PPL-E05/ LNKT 060540PPR-E05/ LNKT 060540PPTL-M06/ LNKT 060540PPTR-M06/ LNKW 0605, Arbor Shank, Right Cutting Direction, 1 in Arbor Hole, Arbor Connection, 1.014 in Maximum Depth of Cut, R335.18 Toolholder

The Disc milling cutter R335.18-04.00-0708N features an arbor shank type and a cutting diameter of 4 inch. With a cutting width ranging from 0.394 to 0.472 inch, it provides a peripheral effective cutting edge count of 4. The connection bore diameter is 1 inch, and the maximum cutting depth is 1.014 inch. The workpiece side connection is compatible with LNK.0605.., LNK.080520, and LNK.080524. This cutter is suitable for a variety of workpiece materials when equipped with the appropriate grades. This product can be recycled. Get in contact with your sales representative to discuss next steps for more circularity. Check out more products for machine side or workpiece side options within our range to complement this product. With our complementing services, you can make the most of your tool. Download the Seco Assistant to get access to comprehensive tooling information. This text was generated and translated with the assistance of AI and may contain inaccuracies.
