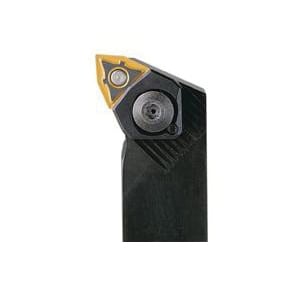

Seco 75079505 Indexable Turning Tool Holder, ANSI Code: PWLNL1616H06, PWLN Tool Holder, WN..0604.. Insert, Left Hand Cutting, 16 mm W Square Shank, 95 deg Lead Angle, Negative Rake, 100 mm OAL


Description

Seco Indexable Turning Tool Holder, PWLN Tool Holder, 100 mm Overall Length, Square Shank, 16 mm W Shank, Insert Compatibility: WN..0604.., 4 Insert Seat, Left Hand Cutting, 9.53 mm Inscribed Circle, 20 mm Back of Bar to Cutting Edge, 95 deg Lead Angle, 21 mm Head Length, ANSI Code: PWLNL1616H06, Negative Rake, Steel

This wide offering of easily applicable shank and boring bar toolholders adds another level of reliability and productivity to lathe machining. The range of ISO and ANSI toolholders accommodates a comprehensive range of insert types, shapes and sizes, also allowing choice of several leading clamping methods.

Specifications

ANSI Code PWLNL1616H06
Back of Bar to Cutting Edge 20 mm
Cutting Direction Left Hand
Head Length 21 mm
Inscribed Circle 9.53 mm
Insert Compatibility WN..0604..
Insert Seat Size 4
Lead Angle 95 deg
Material Steel
Overall Length 100 mm
Rake Negative
Shank Size 16 mm W
Shank Type Square
Tool Holder Style PWLN

Country of Origin: India
