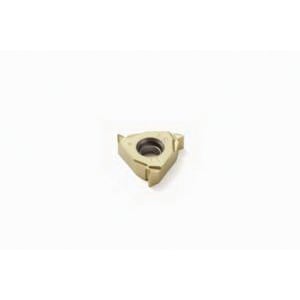

Seco 00077933 Snap-Tap® Laydown Threading Insert, ANSI Code: 16ER11W-A2 CP500, 16ER Insert, 11 TPI, External Thread, BSW Whitworth Thread, Right Hand Cutting, Manufacturer's Grade: CP500, Material Grade: M


Description

Seco Threading Insert, Laydown, Series: Snap-Tap®, 16ER Insert, 16 Insert, External, BSW Whitworth, 11, 9.5 mm Inscribed Circle, 3.5 mm Thickness, 16.5 mm Length, ANSI Code: 16ER11W-A2 CP500, ISO Code: 16ER11W-A2 CP500, A2 Chipbreaker, 0.3 mm Corner Radius, 55 deg Included Angle, Manufacturer's Grade: CP500, Right Hand Cutting, Carbide, PVD-TiAlN+TiN Coated, Material Grade: M

Specifications

ANSI Code 16ER11W-A2 CP500
Chipbreaker A2
Corner Radius 0.3 mm
Cutting Direction Right Hand
Finish PVD-TiAlN+TiN Coated
Included Angle 55 deg
Inscribed Circle 9.5 mm
Insert Size 16
Insert Style 16ER
ISO Code 16ER11W-A2 CP500
Length 16.5 mm
Manufacturer's Grade CP500
Material Carbide
Material Grade M
Series Snap-Tap®
Thickness 3.5 mm
Thread Standard BSW Whitworth
Thread Type External
Threads per Inch 11
Type Laydown

Country of Origin: Sweden
