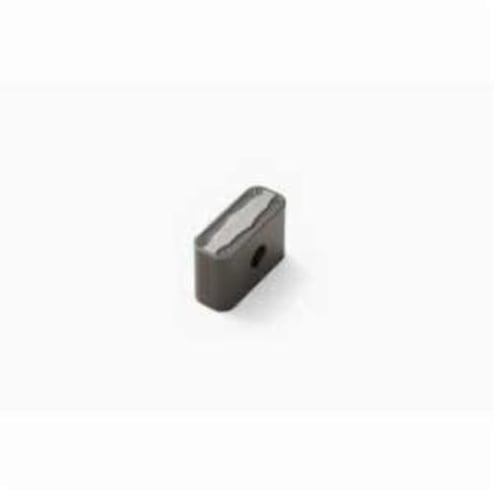

Seco 75623 Turning Insert, ANSI Code: LNMX301940-RR97 TP0500, LNMX Insert, Material Grade: P, 301940 Insert, Rectangle Shape, 30 Seat, Negative/Positive Rake, Neutral Cutting, For Use On Steel, Carbide, Manufacturer's Grade: TP0500


Description

Seco Turning Insert, LNMX Insert, 301940 Insert, Rectangle Shape, 19.05 mm Thickness, 12 mm Width, 30 mm Length, 30 Seat, Negative/Positive Rake, RR97 Chipbreaker, 4 mm Corner Radius, 6.35 mm Diameter Hole, Manufacturer's Grade: TP0500, ANSI Code: LNMX301940-RR97 TP0500, ISO Code: LNMX301940-RR97 TP0500, 90 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3 Coated, Material Grade: P, For Use On: Steel

Specifications

ANSI Code LNMX301940-RR97 TP0500
Chipbreaker RR97
Corner Radius 4 mm
Cutting Direction Neutral
Finish CVD-TiCN+Al2O3 Coated
For Use On Steel
Hole Diameter 6.35 mm
Included Angle 90 deg
Insert Size 301940
Insert Style LNMX
ISO Code LNMX301940-RR97 TP0500
Length 30 mm
Manufacturer's Grade TP0500
Material Carbide
Material Grade P
Rake Negative/Positive
Relief Angle 0 deg
Seat Size 30
Shape Rectangle
Thickness 19.05 mm
Width 12 mm

Country of Origin: Czech Republic

Application:
Roughing Applications
